Products specifications

Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 3.3V (Max), 12V (Max)
Minimum Breakdown Voltage 5.5V, 13.3V
Max Clamping Voltage 9.5V, 15V
Peak Pulse Current(Ippm) 1A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 0.35pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-UDFN (1.8x2)
Win Source Part Number 1037096-ESD7124MUTBG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESD7124MUTBG CAD Model

Description

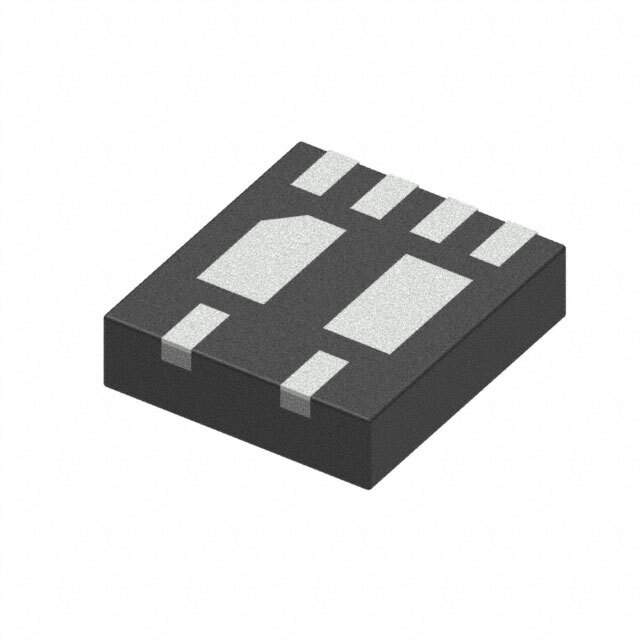

ON Semiconductor ESD7124MUTBG Overview

The ESD7124MUTBG from ON Semiconductor is a state-of-the-art Electrostatic Discharge (ESD) protection device designed to safeguard high-speed data lines from damaging ESD strikes. This compact and robust component is essential for modern electronic systems that require reliable protection without compromising signal integrity.

Key Features

  • Low Clamping Voltage: The device provides a low clamping voltage, ensuring that sensitive circuits are well-protected during ESD events.
  • High-Speed Data Line Protection: It is capable of protecting high-speed data lines, such as USB 3.0, HDMI, and Thunderbolt, without distorting the high-frequency signals.
  • Ultra-Low Capacitance: With an ultra-low capacitance design, the ESD7124MUTBG minimizes signal loss and preserves signal integrity, making it ideal for high-speed applications.
  • Small Package: The device comes in a μDFN package, which is highly space-efficient and perfect for compact electronic assemblies.
  • Multi-Channel Integration: It integrates multiple ESD protection channels, reducing component count and simplifying PCB layout.

Applications

The ESD7124MUTBG is well-suited for a wide range of applications where ESD protection is critical. Some of the common applications include:

  • Portable Electronics
  • Smartphones and Tablets
  • Personal Computers and Laptops
  • Digital Cameras and Video Equipment
  • Wearable Technology
  • High-Speed Data Ports and Interfaces

Performance and Quality

ON Semiconductor's commitment to quality ensures that the ESD7124MUTBG meets stringent performance criteria. The device is designed to withstand ESD strikes as defined by the IEC 61000-4-2 standard, providing peace of mind for product designers and end-users alike. Its robust construction and reliable performance make it an excellent choice for protecting high-speed data lines in a variety of electronic devices.

By incorporating the ESD7124MUTBG into your design, you can enhance the durability and longevity of your electronic products, ensuring they continue to perform at their best even in the face of unexpected ESD events.
