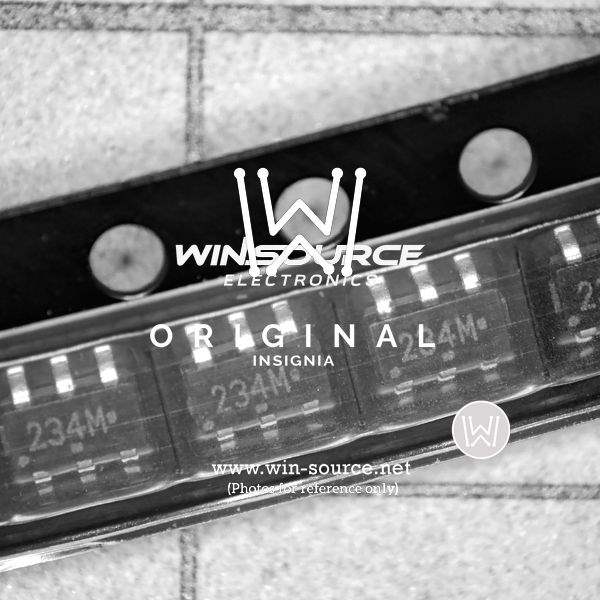

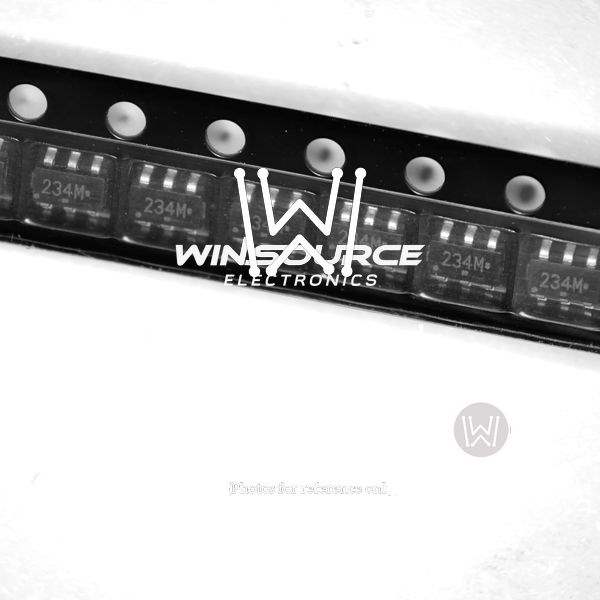

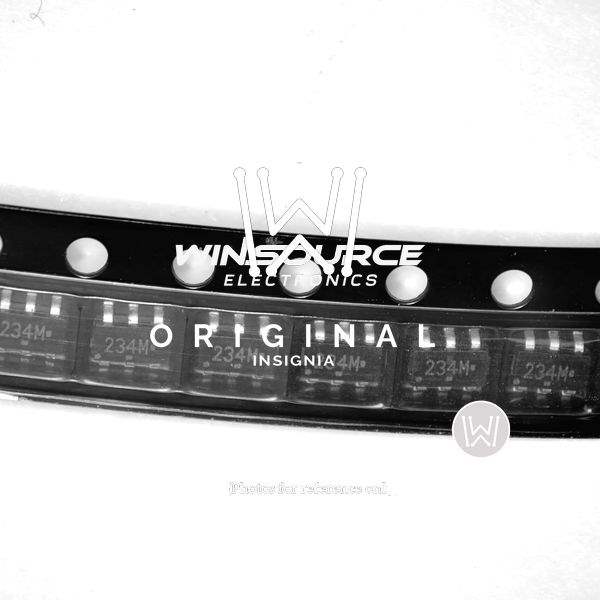

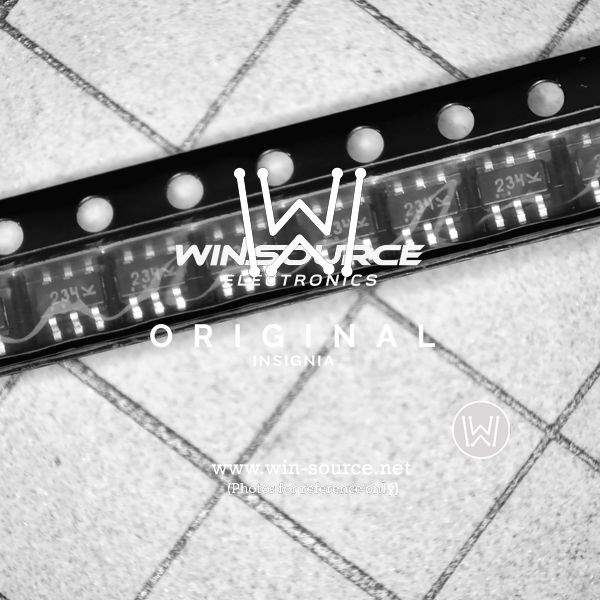

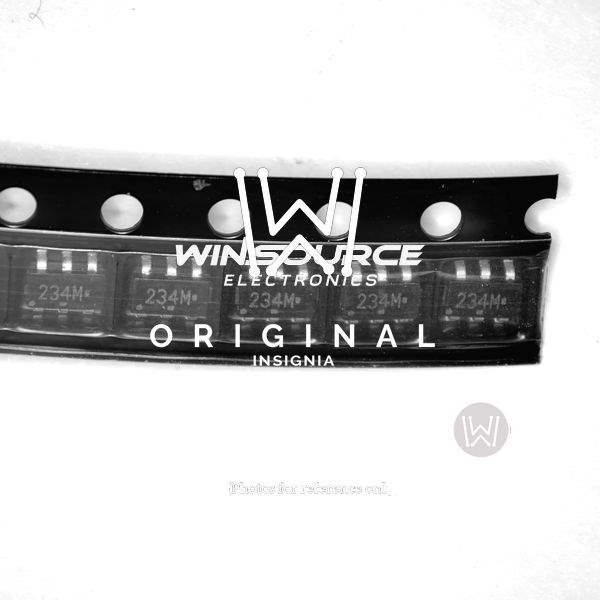

ON Semiconductor CM1213A-04SO ESD Protection Device

The CM1213A-04SO from ON Semiconductor is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) threats. This compact and highly effective component is an ideal solution for protecting sensitive electronics in a variety of applications, including USB interfaces, computer peripherals, and mobile devices.

Key Features

• Multi-Channel Protection: The CM1213A-04SO offers four channels of ESD protection, making it suitable for protecting multiple data lines simultaneously.
• Low Capacitance: With a low loading capacitance of just 0.6pF per channel, it ensures high-speed signal integrity, which is crucial for maintaining the performance of fast data interfaces.
• High ESD Protection: It can withstand ESD events up to ±15kV contact discharge and ±30kV air discharge, as per the IEC 61000-4-2 standard, providing robust protection against common ESD occurrences.
• Small Package Size: The CM1213A-04SO comes in a small-outline package (SO-8), which is ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: This product meets environmental standards, being lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive.

Applications

• USB 2.0 and 3.0 Ports
• Portable Electronics
• Computer Peripherals
• Mobile Phones and Accessories
• Consumer Electronics
• Set-Top Boxes

The CM1213A-04SO is designed with the needs of modern electronics in mind, ensuring both safety and performance. Its ability to protect against ESD without compromising signal quality makes it an invaluable component in protecting the longevity and reliability of electronic devices. Whether it's for personal gadgets or industrial applications, the CM1213A-04SO by ON Semiconductor is a smart choice for designers looking to enhance the ESD protection of their systems.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to consult the datasheet and support documentation available from ON Semiconductor's official website or authorized distributors.
