ON Semiconductor CAT4004BHU2-GT3 LED Driver

The CAT4004BHU2-GT3 from ON Semiconductor is a high-efficiency, 4-channel LED driver designed to simplify the process of driving multiple LEDs in a variety of lighting applications. This compact device is ideal for portable and battery-powered applications due to its low power consumption and small footprint.

One of the key features of the CAT4004BHU2-GT3 is its ability to drive up to four LEDs with a constant current for uniform brightness. This is particularly beneficial for applications where consistent light output is critical, such as backlighting for LCD displays, keypad lighting for mobile devices, and indicator or decorative lighting.

The device operates from a power supply ranging from 2.5V to 5.5V, making it versatile for use in a wide range of products. Each of the four LED channels can be driven at up to 25mA, and the current can be easily set by a single external resistor. This not only simplifies the design process but also provides flexibility in controlling the brightness of the LEDs.

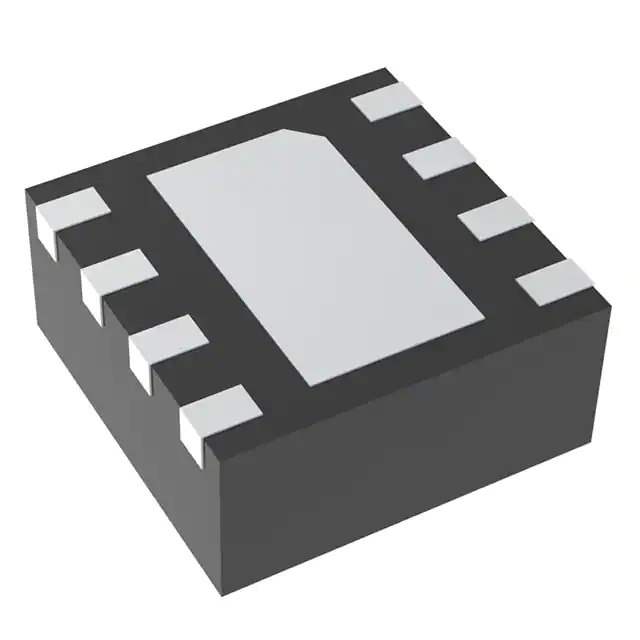

Additional features of the CAT4004BHU2-GT3 include thermal shutdown protection, which prevents damage to the device under excessive temperature conditions, and a low profile UQFN package. The LED driver also boasts a high efficiency of up to 85%, which is critical for maximizing battery life in portable devices.

For ease of integration, the CAT4004BHU2-GT3 offers a simple, 1-wire digital interface to enable or disable each LED channel. This functionality allows for straightforward control without the need for complex software or additional hardware components.

ON Semiconductor's commitment to quality ensures that the CAT4004BHU2-GT3 meets the rigorous standards required for a reliable and long-lasting LED driving solution. Whether you're designing consumer electronics, automotive interiors, or handheld devices, the CAT4004BHU2-GT3 offers a practical and efficient approach to LED lighting.

Overall, the ON Semiconductor CAT4004BHU2-GT3 is a versatile and reliable choice for designers looking to enhance their products with efficient, consistent LED illumination.
