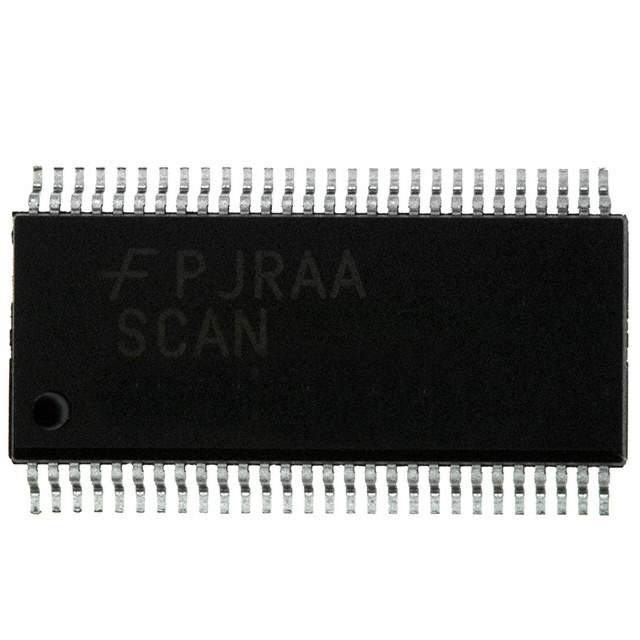

Product Overview: 74LCX16646MEAX

The 74LCX16646MEAX from ON Semiconductor is a high-performance, 16-bit transceiver designed for use in bidirectional communication between data buses. This integrated circuit is part of the LCX family, which is well-known for its low-voltage operation and low power consumption, making it an ideal choice for power-sensitive applications. The device operates at a voltage range of 2.3V to 3.6V, which allows for interfacing with 3.3V logic levels while maintaining 5V tolerant inputs.

Key Features

• Low Voltage Operation: The 74LCX16646MEAX operates at a voltage range of 2.3V to 3.6V, making it compatible with modern low-voltage logic levels.
• High-Speed Interface: With its ability to support high-speed data transfer, this transceiver is suitable for high-performance computing and communication systems.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V, ensuring compatibility with mixed-voltage systems and providing design flexibility.
• Power-Off Protection: The device provides power-off protection on inputs and outputs, which helps prevent any erroneous data transmission when the device is powered off.
• Bus-Hold Circuitry: Integrated bus-hold circuitry on the data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board design.
• Flow-Through Architecture: The pinout design supports easy PCB routing for wide data paths with minimal signal skew.

Applications

The 74LCX16646MEAX is versatile and can be used in a variety of applications, such as:

• Data communication and networking equipment
• Servers and high-performance computing systems
• Memory interface circuits
• Signal bridging between different voltage domains

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The 74LCX16646MEAX is manufactured under strict quality control standards, ensuring reliable performance and longevity in critical applications. Its robust design is also characterized by ESD protection, further enhancing its durability in harsh environments.

Whether you are designing a new system or upgrading an existing one, the 74LCX16646MEAX transceiver is an excellent choice for ensuring efficient data communication while minimizing power consumption.
