ON Semiconductor 2N5680 High-Power NPN Transistor

The 2N5680 from ON Semiconductor is a high-power NPN bipolar junction transistor (BJT) designed for use in a wide range of applications requiring robust performance. This transistor is characterized by its high current capacity and fast switching speeds, making it an ideal choice for power amplification and switching applications.

Key Features

• Voltage and Current Ratings: The 2N5680 is capable of withstanding collector-emitter voltages up to 80V, with a collector current rating of up to 1A, making it suitable for medium power applications.
• High Power Dissipation: With a power dissipation rating of up to 5W, this transistor can handle significant thermal loads, which is essential for reliability in high-power circuits.
• High Gain Bandwidth Product: The device offers a transition frequency of 50 MHz, ensuring good performance in high-frequency applications.

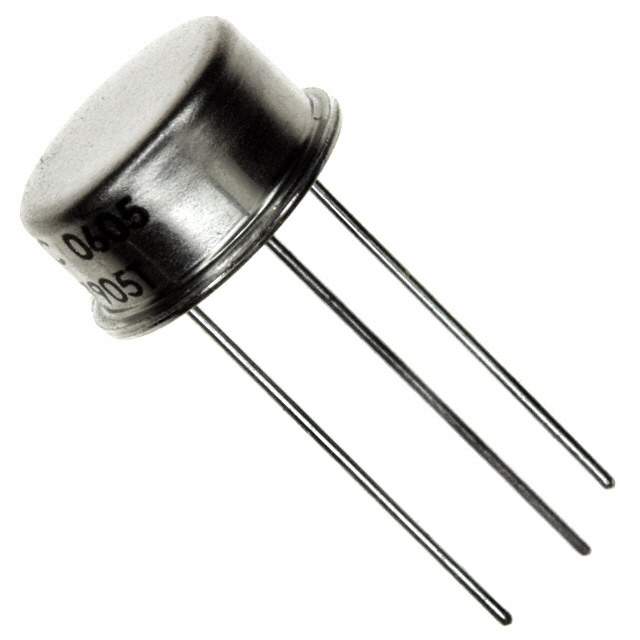

• TO-39 Package: Enclosed in a metal TO-39 package, the 2N5680 offers excellent thermal conduction properties, allowing for efficient heat dissipation.

Applications

• Linear amplification and switching
• Power regulators
• Motor controls
• Audio amplifiers
• Signal processing

The 2N5680 transistor is a versatile component that is well-suited for a variety of electronic designs. Its robust construction and reliable performance under high-stress conditions make it a popular choice among professionals and hobbyists alike. Whether you are designing a power supply, constructing a motor control circuit, or building an audio amplifier, the 2N5680 offers the performance and reliability you need.

ON Semiconductor is known for producing high-quality electronic components that are used in a myriad of devices across multiple industries. The 2N5680 is a testament to their commitment to providing components that meet the stringent requirements of modern electronic applications. When choosing the 2N5680, you can be confident that you are getting a product that delivers both quality and durability.

For detailed specifications and application notes, please refer to the official ON Semiconductor datasheet for the 2N5680 transistor.
