The 2N3392 is a versatile NPN bipolar junction transistor designed for general purpose amplifier applications. Manufactured by ON Semiconductor, a leading innovator in the semiconductor industry, this transistor is known for its reliability and efficiency in a wide range of electronic circuits.
With its capability to handle moderate power levels, the 2N3392 transistor is well-suited for amplification and switching purposes in commercial, industrial, and educational environments. It features a collector-emitter voltage (V<sub>CEO) of 25V, collector-base voltage (V<sub>CBO) of 60V, and emitter-base voltage (V<sub>EBO) of 5V, which makes it a good fit for various electronic applications.
The maximum collector current (I<sub>C) of 500 mA allows the 2N3392 to drive larger currents than many small-signal transistors, providing the necessary power for a range of uses. The device also boasts a power dissipation of 625 mW, ensuring that it can sustain a significant amount of power without overheating, which is crucial for maintaining the longevity and stability of the device.

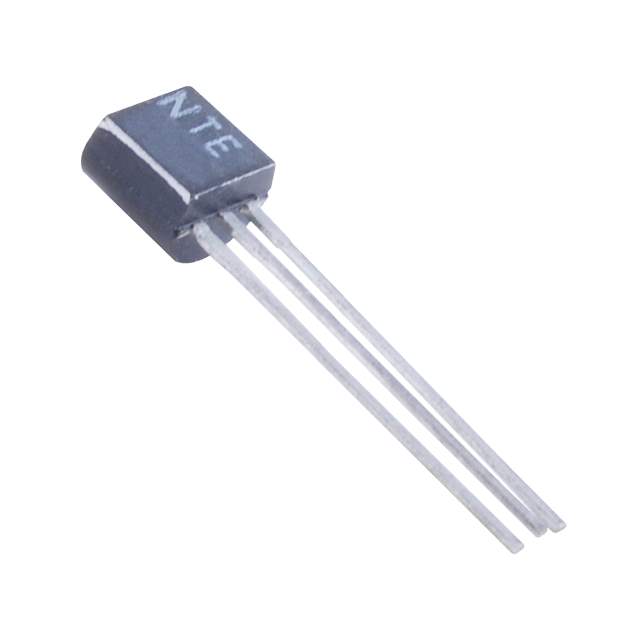

ON Semiconductor has designed the 2N3392 with a TO-92 package, which is not only easy to install but also offers a compact footprint on printed circuit boards. This makes it an ideal choice for space-constrained applications. Moreover, the TO-92 package is widely used and recognized in the industry, making it a convenient option for designers and hobbyists alike.
The h<sub>FE (DC current gain) of the 2N3392 ranges from 30 to 300, allowing for a broad range of signal amplification capabilities. This flexibility ensures that the transistor can be used in diverse circuit designs without the need for extensive modifications.
In summary, the 2N3392 NPN transistor from ON Semiconductor is a reliable and efficient component that is perfect for general purpose amplification needs. Its robust electrical characteristics and convenient packaging make it a valuable addition to any electronic project or product design.
