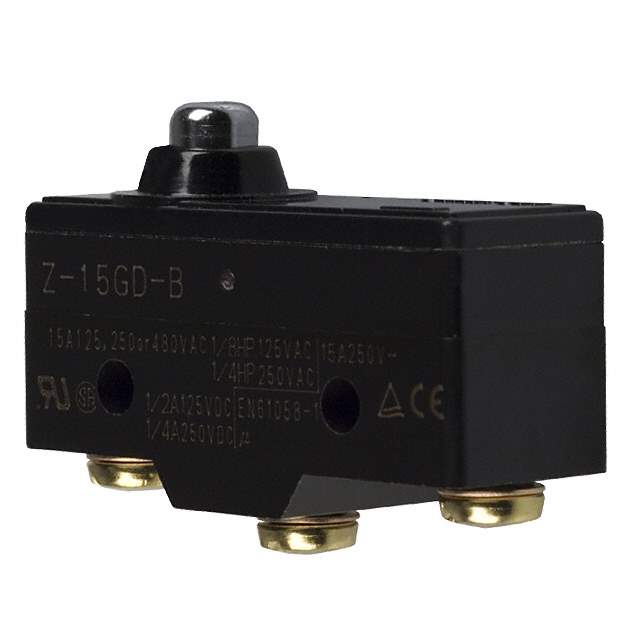

Z-15GD-B Real Image
Same model may have multiple batches, images only for reference.

Z-15GD-B

Part No Z-15GD-B
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Automation and Safety
Packaging Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP00
Operating Force 250 ~ 350gf
Release Force 114gf
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.846" (21.5mm)
Electrical Life 500,000 Cycles
Mechanical Life 20,000,000 Cycles
Base Product Number Z-15G
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Part Number Z15GD-B7-K,Z15GDB,Z15GD-B,SW191
Standard Package 1
Win Source Part Number 1323785-Z-15GD-B
Ultra Librarian 3D Model Ultra Librarian Z-15GD-B CAD Model

Description

The Omron Automation and Safety Z-15GD-B is a limit switch with a circuit of SPDT and a switch function of On-Mom.

  • Actuator Type: Round (Pin Plunger)
  • Ingress Protection: IP00
  • Operating Force: 250 ~ 350gf
  • Release Force: 114gf
  • Pretravel: 0.015" (0.4mm)
  • Differential Travel: 0.002" (0.05mm)
  • Overtravel: 0.062" (1.6mm)
  • Operating Position: 0.846" (21.5mm)
  • Operating Temperature: -25°C ~ 80°C
  • Supply and Demand Status: Unlimited
