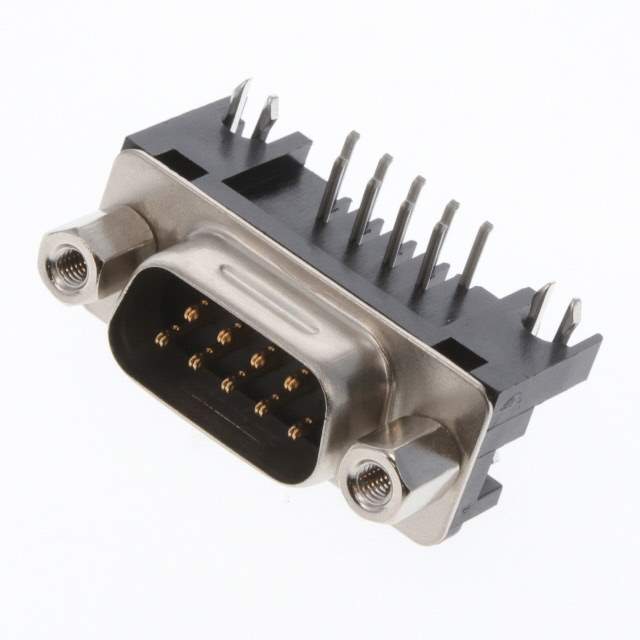

XM3C-0922-112 Real Image
Same model may have multiple batches, images only for reference.

XM3C-0922-112

Part No XM3C-0922-112
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
XM3C-0922-112 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XM3C
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number XM3C
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339698-XM3C-0922-112
Ultra Librarian 3D Model Ultra Librarian XM3C-0922-112 CAD Model

Description

The XM3C series D-sub connector assembly is a male plug with 9 positions and 2 rows.

  • Positions: 9
  • Rows: 2
  • Voltage Rating: 300V
  • Current Rating: 5A
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: 16.0µin (0.41µm)
  • Connector Type: Shielded Signal Male Pin Plug
  • Termination: Solder
  • Feature: Board Lock
  • Mounting Options: Through Hole, Right Angle or Panel Mount
  • Shell Material: Steel with Nickel Plating
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Shell Size Connector Layout: 1 (DE, E)
  • Flange Feature: Mating Side with a Female Screw Lock (M2.6)
  • Operating Temperature: -55°C to 105°C
  • Flammability Rating: UL94 V-0
  • Package: Tray
  • Standard Package Quantity: 90
