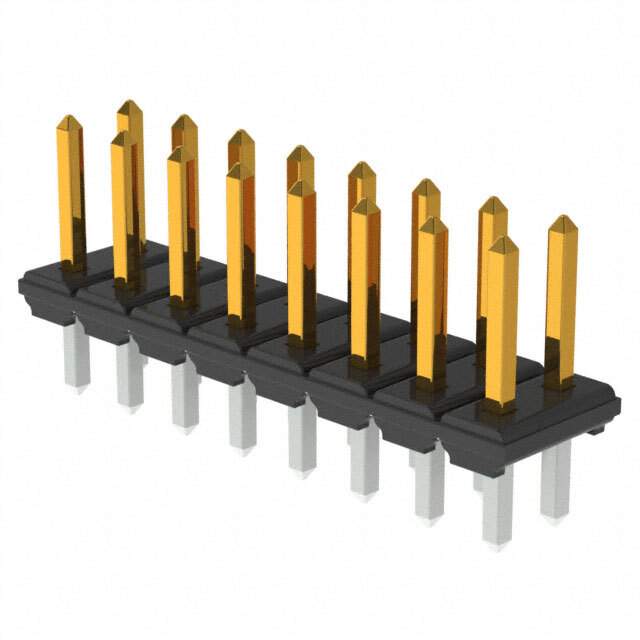

XJ8C-1611 Real Image
Same model may have multiple batches, images only for reference.

XJ8C-1611

Part No XJ8C-1611
Manufacturer Omron
Catalog Rectangular Connectors
Description Header Plugs / Jumpers | CONN HEADER VERT 16POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.169" (4.30mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.339" (8.60mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90μin (0.150μm)
Contact Material Brass, Nickel
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 300V
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1282133-XJ8C-1611
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XJ8C-1611 CAD Model

Description

The Omron Electronics Inc-EMC Div 1282133-XJ8C-1611 is a through-hole header connector with 16 positions.

  • Positions: 16
  • Mounting Type: Through Hole
  • Contact Type: Male Pin
  • Material: Brass and Nickel
  • Pitch of Mating: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Voltage Rating: 300V
  • Current Rating: 2A
  • Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Contact Finish Thickness: 5.90μin (0.150μm) for mating
  • Contact Length for Mating: 0.169" (4.30mm)
  • Contact Length for Post: 0.110" (2.79mm)
  • Overall Contact Length: 0.339" (8.60mm)
  • Insulation Height: 0.059" (1.50mm)
  • Operating Temperature: -55°C to 105°C
