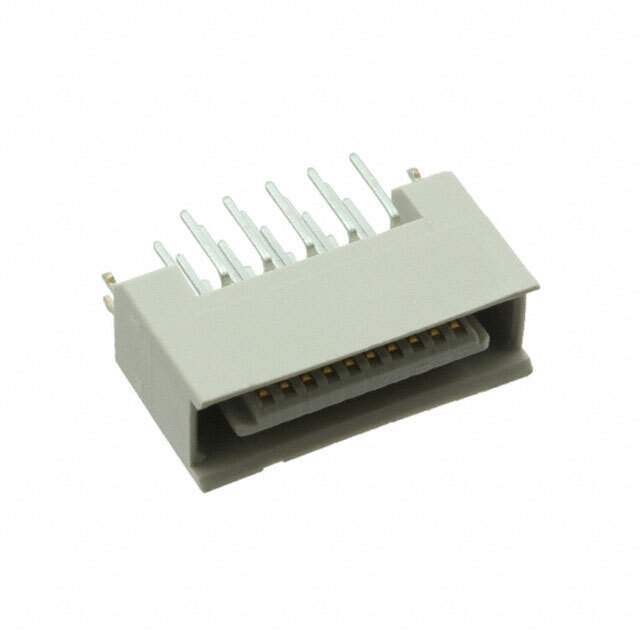

XH3A-2041-2A Real Image
Same model may have multiple batches, images only for reference.

XH3A-2041-2A

Part No XH3A-2041-2A
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN PLUG 20POS VERT GOLD / 20 Position Connector Plug, Center Strip Contacts Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Omron Electronics Inc-EMC Div
Series XH3
Package Bulk
Connector Type Plug, Center Strip Contacts
Number of Positions 20
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Features Board Lock
Contact Finish Gold
Mated Stacking Heights 14mm, 15mm, 17mm, 18mm
Height Above Board 0.421" (10.70mm)
Base Product Number XH3A-2041
Standard Package 120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339567-XH3A-2041-2A
Ultra Librarian 3D Model Ultra Librarian XH3A-2041-2A CAD Model

Description

The XH3 series connector from Omron Electronics Inc-EMC Div is a rectangular connector with a center strip contact type.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Series: XH3
  • Connector Type: Rectangular Connector
  • Contact Type: Center Strip
  • Number of Positions: 20
  • Pitch: 0.050" (1.27mm)
  • Board Lock: Yes
  • Connector Style: Plug
  • Number of Rows: 2
  • Height Above Board: 0.421" (10.70mm)
  • Contact Finish: Gold
  • Mated Stacking Heights: 14mm, 15mm, 17mm, 18mm
  • Mounting Type: Through Hole
  • Package: Bulk
  • Standard Package Quantity: 120
