Same model may have multiple batches, images only for reference.

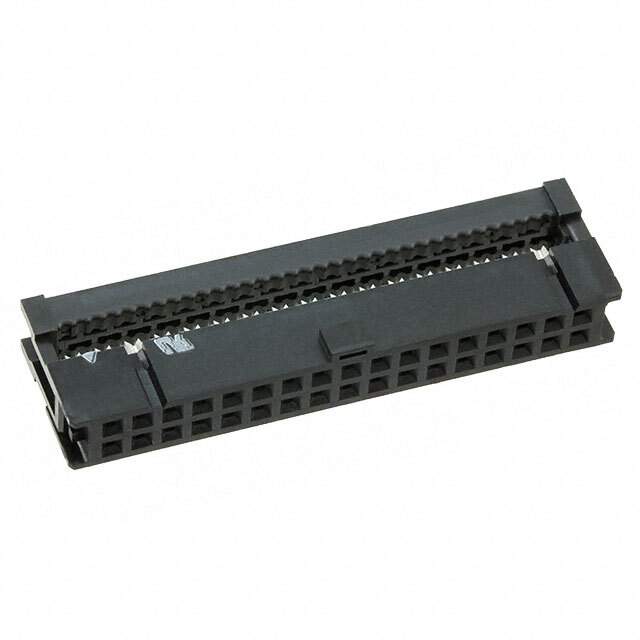

XG4M-3430 Real Image
Same model may have multiple batches, images only for reference.

XG4M-3430

Part No XG4M-3430
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 34POS IDC 28AWG GOLD  /  34 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 34
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Base Product Number XG4M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XG4M-3430 BY OMZ,XG4M-3430-ND,XG4M3430,XG4M3430BYOMZ,-XG4M,OR1163
Standard Package 60
Win Source Part Number 1178594-XG4M-3430
Ultra Librarian 3D Model Ultra Librarian XG4M-3430 CAD Model

Description

The Omron Electronics Inc-EMC Div electronic component with a Win Source Part Number of 1178594-XG4M-3430 is a connector that falls under the category of rectangular connectors - free hanging, panel mount.

  • Series: XG4
  • Number of Positions: 34
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Rows: Two
  • Row Spacing: 0.100" (2.54mm)
  • Features: Feed Through, Polarizing Key
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
  • Packaging: Bulk
  • Standard Package: 60
  • Mounting Type: Free Hanging (In-Line)
  • Alternative Parts: XG4M3430
  • ECCN: EAR99
