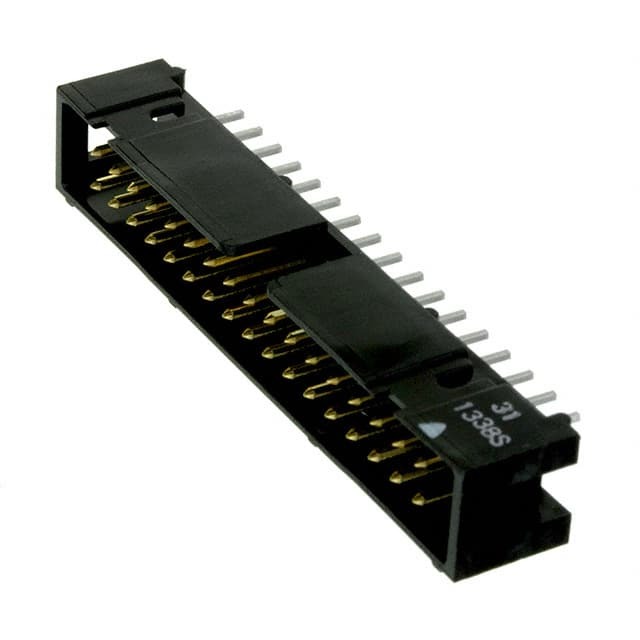

The Omron 1000797-XG4C-3431 is an electronic component that is a part of the connectors, interconnects>rectangular connectors - headers, male pins category.

• Series: XG4
• Manufacturer: Omron Electronics Inc-EMC Div
• Win Source Part Number: 1000797-XG4C-3431
• Connector Type: header connector
• Positions: 34
• Keying Slot: Yes
• Contact Type: male pins
• Positions Loaded: all positions loaded
• Rows: 2
• Termination: solder terminated
• Fastening Type: push-pull
• Package: tray package
• Contact Material: brass, nickel
• Voltage Rating: 300V
• Mated Stacking Heights: 10.1mm, 19mm, 20.2mm
• Ingress Protection: not specified
• Material Flammability Rating: UL94 V-0
• Insulation Material: polybutylene terephthalate (PBT), glass filled
• Connection Style: board to board or cable
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: gold, 5.90µin (0.150µm)
• Contact Finish-Post: tin
• Contact Finish Thickness-Post: 78.7µin (2.00µm)
• Insulation Color: black
• Mounting: through hole
• Shrouding: shrouded-4 wall
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Length-Post: 0.126" (3.20mm)
• Overall Contact Length: 0.480" (12.19mm)
• Insulation Height: 0.335" (8.51mm)
• Contact Shape: square
• Temperature Range: -55°C ~ 105°C
• Contact Length-Mating: 0.240" (6.10mm)
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating (amps): 3A
• HTSUS: 8536.69.4040
