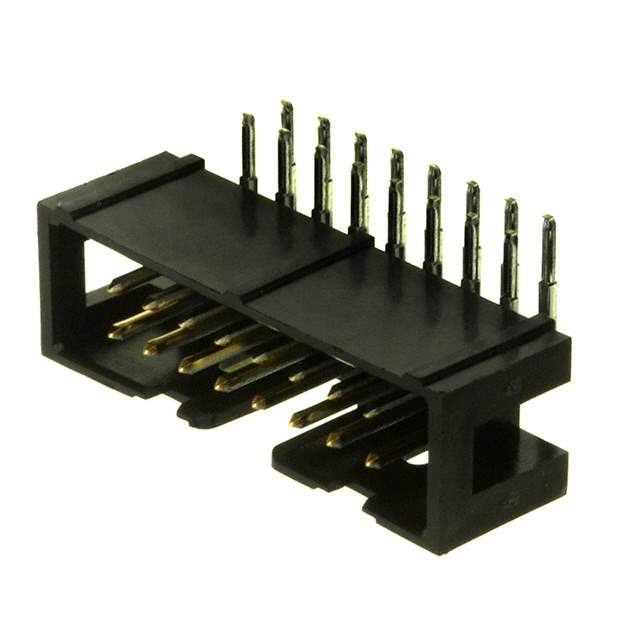

XG4C-1634 Real Image
Same model may have multiple batches, images only for reference.

XG4C-1634

Part No XG4C-1634
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2.54MM  /  Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.323" (8.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C1634-ND,XG4C1634,OR957,XG4C-1634 BY OMZ
Standard Package 110
Win Source Part Number 1000794-XG4C-1634
Ultra Librarian 3D Model Ultra Librarian XG4C-1634 CAD Model

Description

The Omron Electronics Inc-EMC Div XG4 Series Rectangular Connectors are a reliable and high-quality connector solution.

  • Positions: 16
  • Keying Slot: Yes
  • Contact Type: male pin headers
  • Positions Loaded: all
  • Rows: two
  • Termination: solder terminable
  • Fastening Type: push-pull
  • Package: tray
  • Standard Package: 110
  • Voltage Rating: 300V
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: gold
  • Contact Finish Thickness-Mating: 5.90μin (0.150μm)
  • Contact Finish-Post: tin
  • Contact Finish Thickness-Post: 78.7μin (2.00μm)
  • Mounting Type: through-hole and right-angle mountable
  • Shrouding: shrouded-4 wall shrouding
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
