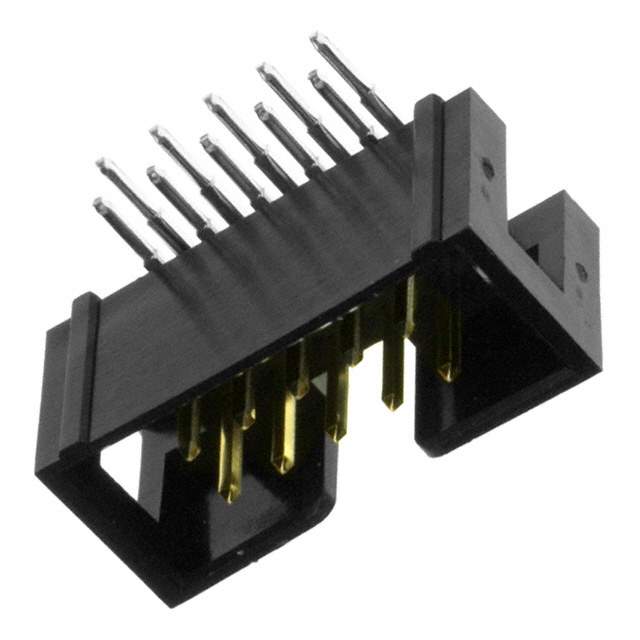

XG4C-1034 Real Image
Same model may have multiple batches, images only for reference.

XG4C-1034

Part No XG4C-1034
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM  /  Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.323" (8.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C1034-ND,XG4C1034,OR897,XG4C-1034 BY OMZ
Standard Package 150
Win Source Part Number 1000792-XG4C-1034
Ultra Librarian 3D Model Ultra Librarian XG4C-1034 CAD Model

Description

The Omron XG4C-1034 connector is a male pin header with a 10 position loading capacity.

  • Keying Slot: Yes
  • Connection Type: board-to-board or cable connections
  • Material: polybutylene terephthalate (PBT)
  • Filler: glass-filled
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Contact Material: brass and nickel
  • Mounting Type: through-hole
  • Shrouding: right-angle shrouding with four walls
  • Contact Finish: gold
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Length for Mating: 0.240" (6.10mm)
  • Post Length: 0.126" (3.20mm)
  • Temperature Range: -55°C to 105°C
  • Package: tray
  • Insulation Color: black
