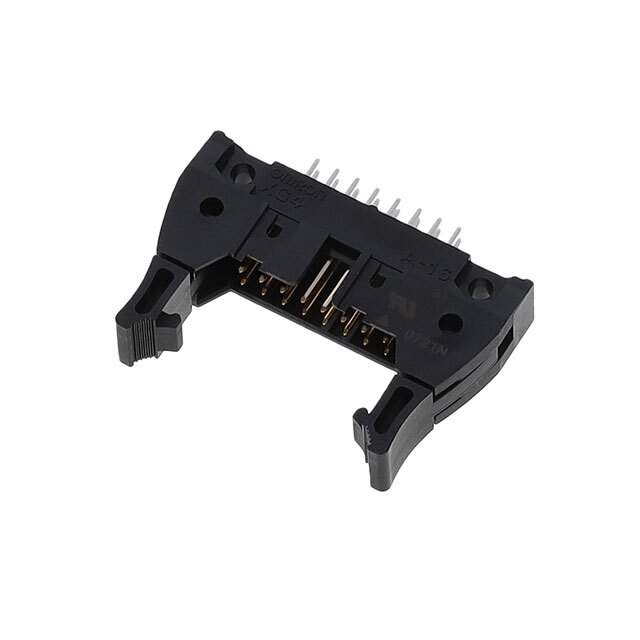

XG4A-1631

Part No XG4A-1631
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A1631,XG4A-1631 BY OMZ,OR884,XG4A1631BYOMZ,XG4A1631-ND
Standard Package 70
Win Source Part Number 984925-XG4A-1631
Ultra Librarian 3D Model Ultra Librarian XG4A-1631 CAD Model

Description

The XG4 series from Omron Electronics Inc-EMC Div is a 16-position male pin header connector.

  • Positions: 16
  • Features: Keying Slot, Mounting Flange, Shrouded 4-Wall Design
  • Connector Type: Board-to-Cable/Wire
  • Mating Pitch: 0.100 inches (2.54mm)
  • Mating Contact Finish: Gold
  • Mating Contact Finish Thickness: 5.90µin (0.150µm)
  • Contact Material: Brass with Nickel Plating
  • Post Finish: Tin with a thickness of 78.7µin (2.00µm)
  • Mounting Type: Through-Hole
  • Locking: Latch Lock/Eject Hooks, Long Fastening Type
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 105°C
  • Voltage Rating: 300V
  • Package: Tray
  • Standard Package: 70 units
