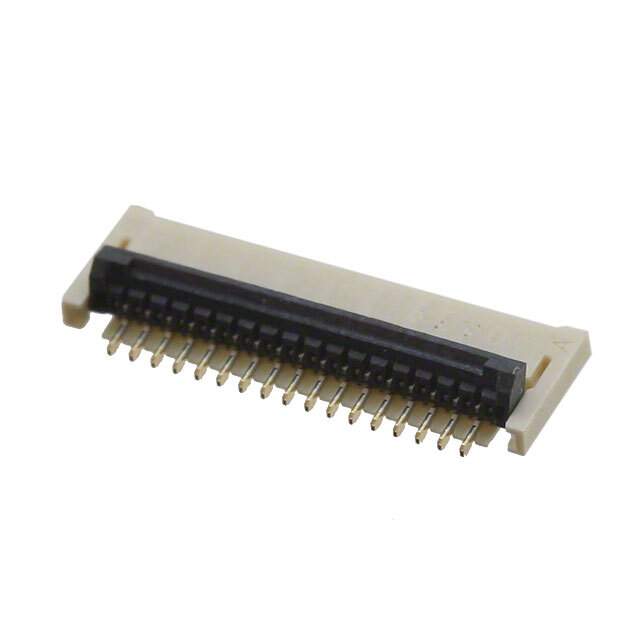

XF3C-3545-41A Real Image
Same model may have multiple batches, images only for reference.

XF3C-3545-41A

Part No XF3C-3545-41A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 35POS 0.25MM R/A / 35 Position FPC Connector Contacts, Top and Bottom 0.010" (0.25mm) Surface Mount, Right Angle
Datasheet
XF3C-3545-41A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF3C
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 35
Pitch 0.010" (0.25mm)
Termination Solder
FFC, FCB Thickness 0.12mm
Height Above Board 0.033" (0.84mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF3C-3545-41A BY OMZ,OR788DKR,XF3C354541A,XF3C354541ABYOMZ,2266-XF3C-3545-41A,OR788TR,OR788CT
Standard Package 2,000
Win Source Part Number 984924-XF3C-3545-41A
Ultra Librarian 3D Model Ultra Librarian XF3C-3545-41A CAD Model

Description

This XF3C series FFC/FPC connector from Omron Electronics Inc-EMC Div has 35 positions with a pitch of 0.010" (0.25mm).

  • Positions: 35
  • Pitch: 0.010" (0.25mm)
  • Current Rating: 0.2A
  • Voltage Rating: 50V
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90μin (0.150μm)
  • Flat Flex Type: FPC
  • FFC/FCB Thickness: 0.12mm
  • Housing and Actuator Materials: Liquid Crystal Polymer (LCP), Halogen-Free
  • Material Flammability Rating: UL94 V-0
  • Locking Feature: Rotary Lock and Backlock
  • Cable End Type: Straight
  • Mounting Type: Surface Mount, Right Angle
  • Height Above Board: 0.033" (0.84mm)
  • Package: Tape and Reel
  • Standard Package: 2,000 pieces
  • Temperature Range: -30°C to 85°C
  • ECCN: EAR99
