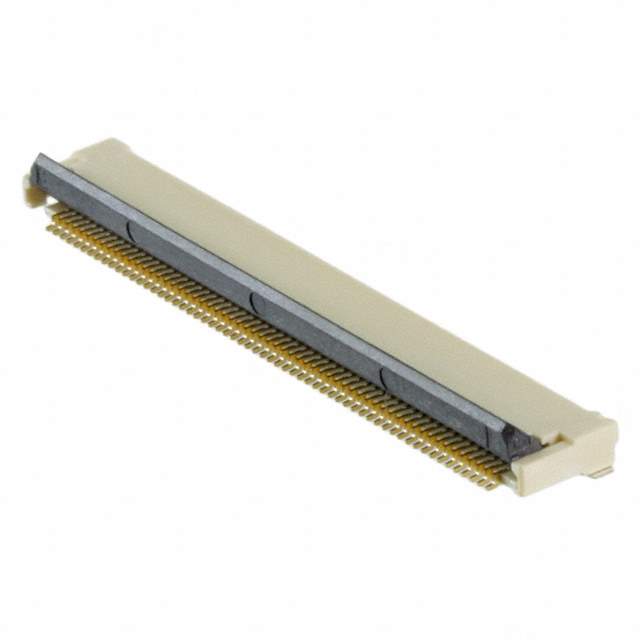

The Omron XF2M-6015-1AH is a connector with 60 positions and a pitch of 0.020" (0.50mm).

• Positions: 60
• Pitch: 0.020" (0.50mm)
• Mounting Style: SMT, right angle
• Termination: solder
• Contact Finish: gold, 5.90μin (0.150μm)
• Contact Material: copper alloy
• Voltage Rating: 50V
• Height Above Board: 0.083" (2.10mm)
• Flat Flex Type: FPC
• Connector/Contact Type: contacts, top and bottom
• FFC, FCB Thickness: 0.30mm
• Locking Feature: rotary lock, backlock
• Cable End Type: tapered
• Actuator Material: liquid crystal polymer (LCP), halogen-free, UL94 V-0
• Housing Color: natural
• Dielectric Material: liquid crystal polymer (LCP), halogen-free
• Mating Cycles: 20
• Family Name: XF2M
• Categories: connectors, interconnects
• Temperature Range: -30°C to 85°C
• Actuator Color: black
• Manufacturer Homepage: www.omron.com/index3.html
• Alternative Parts (Cross-Reference): FH28-60S-0.5SH(10), FH28-60S-0.5SH(98), FH28-60S-0.5SH(11), FH28-60S-0.5SH(05)
• Introduction Date: March 28, 2003
• ECCN: EAR99
• Country of Origin: China
• Estimated EOL Date: 2027
• Halogen-Free: compliant
• Usage: common-used part
• Supply and Demand Status: limited
• Manufacturer Pack Quantity: 1
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 0.5A
