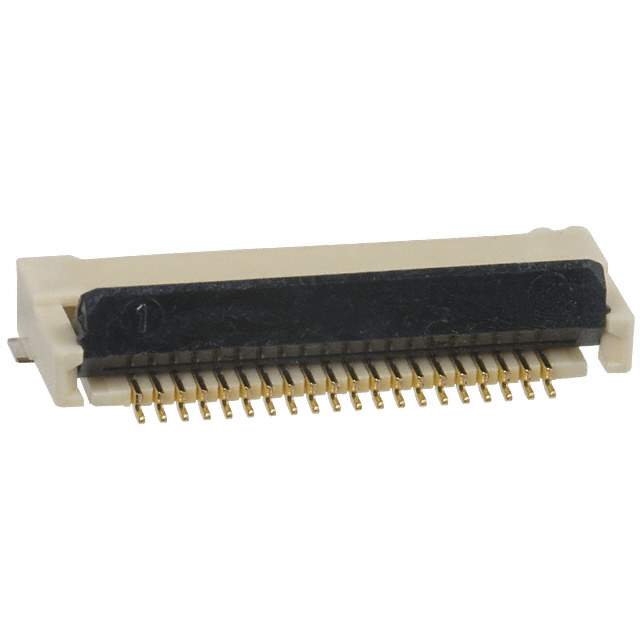

XF2M-2015-1A Omron XF2M-2015-1A Real Image XF2M-2015-1A label picture 2
Same model may have multiple batches, images only for reference.

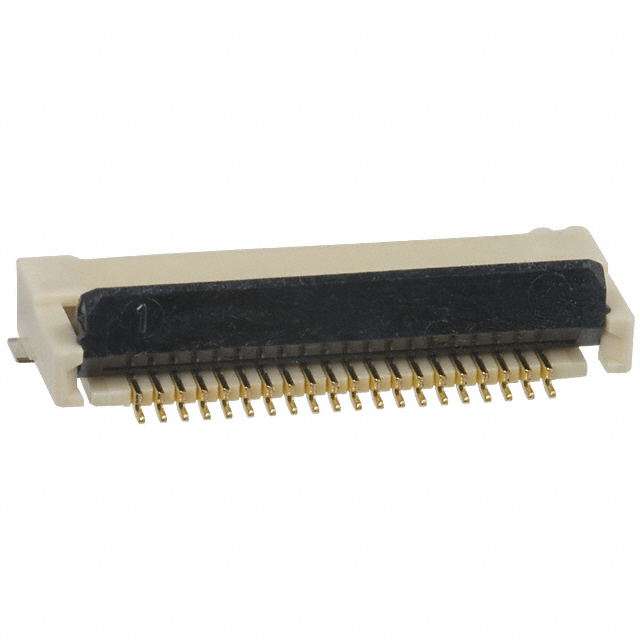

XF2M-2015-1A Omron XF2M-2015-1A Real Image XF2M-2015-1A label picture 2
XF2M-2015-1A Omron XF2M-2015-1A Real Image XF2M-2015-1A label picture 2
Same model may have multiple batches, images only for reference.

XF2M-2015-1A

Part No XF2M-2015-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 20POS 0.50MM R/A / Rotary Backlock Connector (0.5-mm pitch, Dual Contact)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802641-XF2M-2015-1A
Ultra Librarian 3D Model Ultra Librarian XF2M-2015-1A CAD Model

Description

The XF2M-2015-1A by Omron Electronics Inc-EMC Div is a surface mount, right angle connector.

  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Package: Reel
