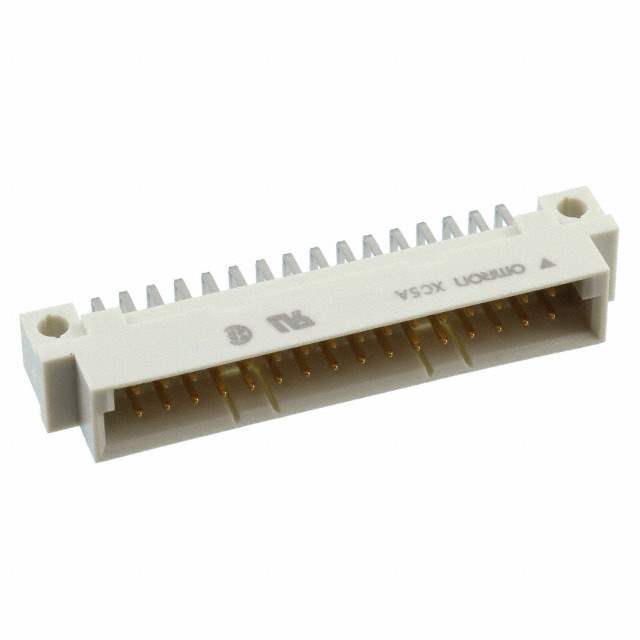

Win Source Part Number WS1306668-XC5A-3222
Category Connectors, Interconnects Backplane Connectors DIN 41612
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Part Status Active
Connector Type Plug, Male Pins
Pitch 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Ultra Librarian 3D Model Ultra Librarian XC5A-3222 CAD Model

Description

  • Fully preserve the characteristics of normal DlN con-nectors while increasing the number of terminals avail-able.
  • A wide product range to fit almost any application.
  • Meeting world market needs with products ranging fromone-piece connectors(card edge) to two-piece connec-tors.
  • Use the twin-contact system for high reliability.
  • Lower insertion force as a result of FEM analysis tech.niques.
  • See the "Standards certification / conformity list" forinformation on conformity to certification standards.
