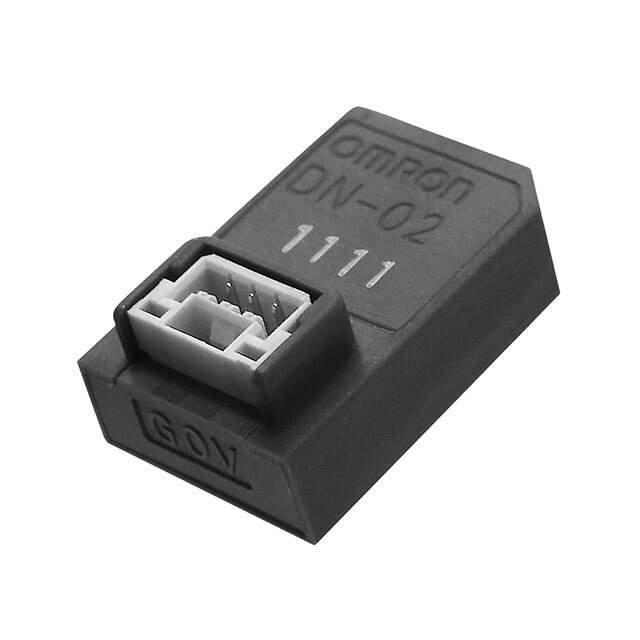

W2DN-02A Real Image
Same model may have multiple batches, images only for reference.

W2DN-02A

Part No W2DN-02A
Manufacturer Omron
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description High sensitivity magnetic sensor making use of the magnetic impedance effect. | SENSOR SW OPEN COLLECTOR CONN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Omron Electronics Inc-EMC Div
Status Obsolete
Output Type Open Collector
Type Switch
Actuator Material Magnet
Termination Style Connector
Supply Voltage (V) 5V ~ 12V
Temperature Range - Operating -10°C ~ 60°C
Manufacturer Package Module
Manufacturer Pack Quantity 200
MSL Level Not Applicable
Win Source Part Number 757992-W2DN-02A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian W2DN-02A CAD Model

Description

The Omron Electronics Inc-EMC Div 757992-W2DN-02A switch is a type of sensor/transducer.

  • Status: Obsolete
  • Temperature Range: -10°C to 60°C
  • Termination Style: Connector
  • Actuator Material: Magnet
  • Output Type: Open Collector
  • Supply Voltage: 5V to 12V
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 200
  • Manufacturer Package: Module
