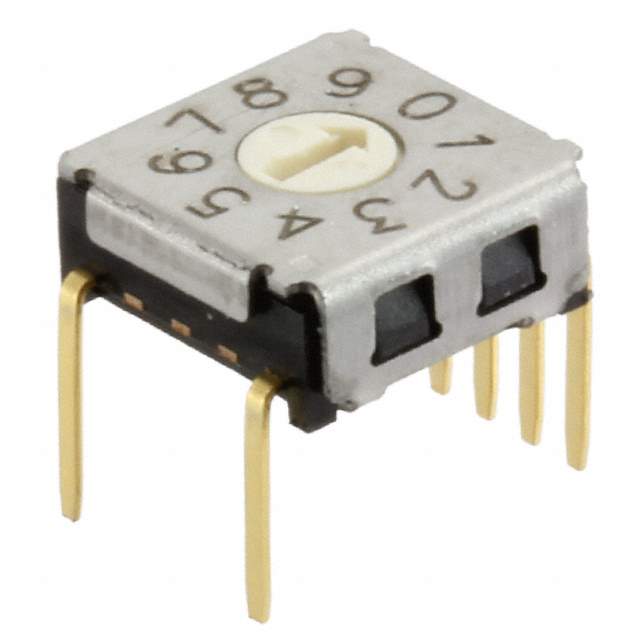

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6K
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.118" (3.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.050" (1.27mm), Half
Washable No
Temperature Range - Operating -30°C ~ 80°C
Length 0.283" (7.20mm)
Electrical Life 20,000 Steps
Base Product Number A6K
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names Z8481,A6K104RF,A6K-104RF-ND,1401-A6K-104RF
Standard Package 60
Win Source Part Number 1066493-A6K-104RF
Ultra Librarian 3D Model Ultra Librarian A6K-104RF CAD Model

Description

The Omron Electronics Inc-EMC Div A6K-104RF is a DIP switch with 10 positions and a pitch of 0.050" (1.27mm), half.

  • Termination Style: PC pin
  • Contact Finish: gold
  • Package: 60 pieces
  • Height Above Board: 0.118" (3.00mm)
  • Series: A6K series
  • Circuit: BCD
  • Actuator Type: rotary for tool
  • Electrical Life: 20,000 steps
  • Mechanical Life: not provided
  • Actuator Level: flush, recessed
  • Washable: No
  • Mounting Type: through hole
  • Temperature Range: -30°C ~ 80°C
  • Alternative Parts: DRD10RAE04, A6K-104RS, A6KV-102RS, A6K-102RF, RTE1010N14, RTE1002V14, RTE1000N14A6K104RF
