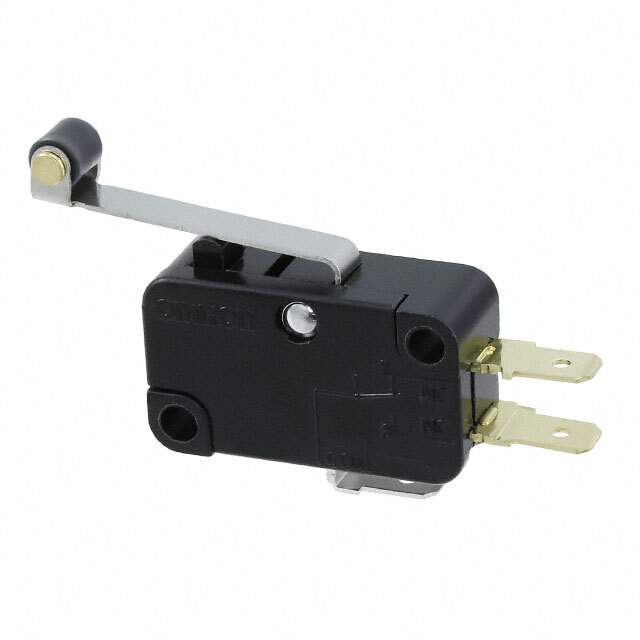

V-156-1C25

Name: V-156-1C25
Brand: Omron
SKU: 397048
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	V-156-1C25
Manufacturer	Omron
Catalog	Snap Action, Limit Switches
Description	SWITCH SNAP ACTION SPDT 15A 250V / Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 15A 250VAC 250VDC 372.85VA 1.23N Screw Mount Quick Connect
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Bulk
Status	Active
Circuit	SPDT
Switch Function	On-Mom
Current Rating	15A (AC), 10A (DC)
Voltage Rating - AC	250V
Voltage Rating - DC	30V
Actuator Type	Lever, Roller
Mounting	Chassis Mount
Termination Style	Quick Connect - 0.187" (4.7mm)
Ingress Protection	IP40
Operating Force, Torque	125gf
Release Force	14gf
Pretravel	0.157" (4.0mm)
Differential Travel	0.060" (1.5mm)
Overtravel	0.062" (1.6mm)
Operating Position	0.815" (20.7mm)
Mechanical Life	50,000,000 Cycles
Electrical Life	100,000 Cycles
Temperature Range - Operating	-25°C to 80°C
Win Source Part Number	213800-V-156-1C25
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	V
Introduction Date	December 05, 1999
ECCN	EAR99
Country of Origin	Indonesia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian V-156-1C25 CAD Model

Alternative Products

Description

The Omron Electronics Inc-EMC Div V series lever roller switch is a chassis mount switch with a SPDT circuit.

Termination Style: Quick Connect
Connector: 0.187" (4.7mm)
Current Rating (AC): 15A
Current Rating (DC): 10A
Voltage Rating (AC): 250V
Voltage Rating (DC): 30V
Ingress Protection: IP40
Electrical Life: 100,000 Cycles
Mechanical Life: 50,000,000 Cycles
Operating Force, Torque: 125gf
Release Force: 14gf
Pretravel: 0.157" (4.0mm)
Differential Travel: 0.060" (1.5mm)
Overtravel: 0.062" (1.6mm)
Operating Position: 0.815" (20.7mm)
Temperature Range: -25°C to 80°C
Popularity: High
Supply and Demand Status: Limited
