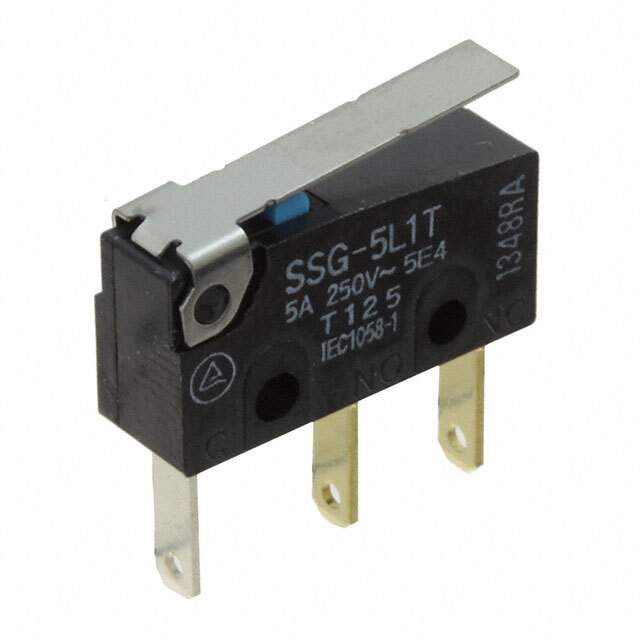

The SSG-5T is a snap-action switch manufactured by Omron. It is designed for applications requiring high sensitivity and reliability. This switch is part of the SS series of subminiature snap action switches, known for their compact size, high precision, and long lifespan.

Applications

• Security systems
• Office equipment
• Measuring instruments
• Vending machines
• Consumer electronics

Features

• High sensitivity: Requires minimal force for actuation.
• Subminiature size: Ideal for compact designs.
• Snap action mechanism: Provides quick and reliable switching.
• Long lifespan: Ensures extended service life.
• Hinge lever actuator: Facilitates actuation with minimal force.

Benefits

• Improved usability: Requires minimal effort to activate.
• Increased design flexibility: Compact size allows for use in space-constrained applications.
• Enhanced reliability: Durable construction minimizes downtime.
• Cost-effective solution: Long lifespan reduces replacement costs.
• Safe operation: Reliable switching contributes to safe operation.

The SSG-5T features a hinge lever actuator that provides high sensitivity. It has a contact rating of 0.1A at 30VDC, making it suitable for low-current applications. The switch's mechanical life is rated for 1 million operations minimum, ensuring long-term reliability. The operating temperature ranges from -25°C to +85°C, making it suitable for use in a wide range of environments. The switch is also RoHS compliant, ensuring that it meets environmental standards. Its compact size, high sensitivity, and long lifespan make it an ideal choice for applications where minimal actuation force and dependable performance are crucial. The quick snap action of the switch provides clean and consistent switching, minimizing the risk of contact bounce. The switch is available in a variety of terminal styles, allowing for easy integration into different circuit designs. The SSG-5T is a versatile and reliable switch that offers a combination of performance, sensitivity, and compact size.
