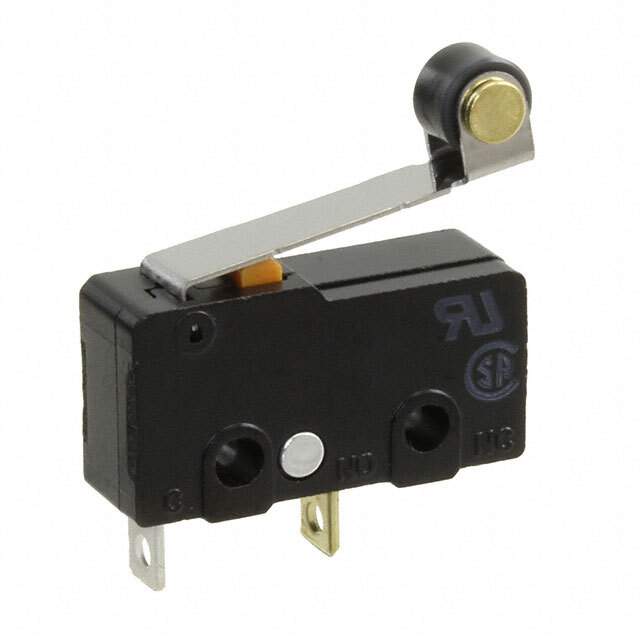

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names -SS-5GL2-3,SS5GL23,SS5GL23BYOMI,Z4582,SS-5GL2-3
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233512-SS-5GL2-3
Ultra Librarian 3D Model Ultra Librarian SS-5GL2-3 CAD Model

Description

The SS series limit switch with part number 1233512-SS-5GL2-3 is a chassis mount switch that has a circuit of SPST-NO and an actuator type of lever or roller.

  • Mounting Type: Chassis Mount
  • Circuit: SPST-NO
  • Actuator Type: Lever or Roller
  • Switch Function: Off-Mom
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Ingress Protection: IP40
  • Voltage Rating: 125 V AC
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Pretravel: Not Specified
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.571" (14.5mm)
  • Temperature Range: -25°C to 85°C
  • Sold In: Bulk
  • Standard Package: 500
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Other Names: -SS-5GL2-3,SS5GL23,SS5GL23BYOMI,Z4582,SS-5GL2-3
