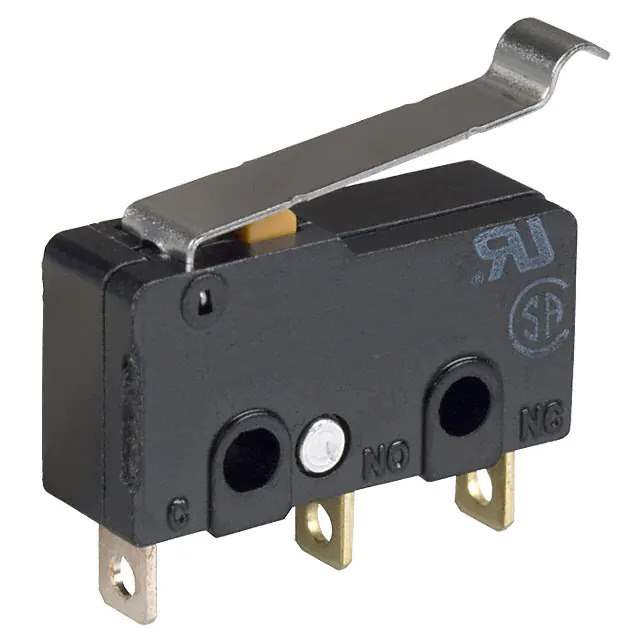

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series SS
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Operating Position 0.420" (10.7mm)
Differential Travel 0.040" (1.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 897585-SS-10GL13
Ultra Librarian 3D Model Ultra Librarian SS-10GL13 CAD Model

Description

The Omron SS Series Limit Switch is a high-quality and reliable component for various industrial applications.

  • Termination Style: solder lug
  • Ingress Protection Rating: IP40
  • Voltage Rating: 250V AC
  • Package: 500 pieces
  • Circuit Type: SPDT
  • Switch Function: on-mom
  • Actuator Type: lever actuator type with a simulated roller
