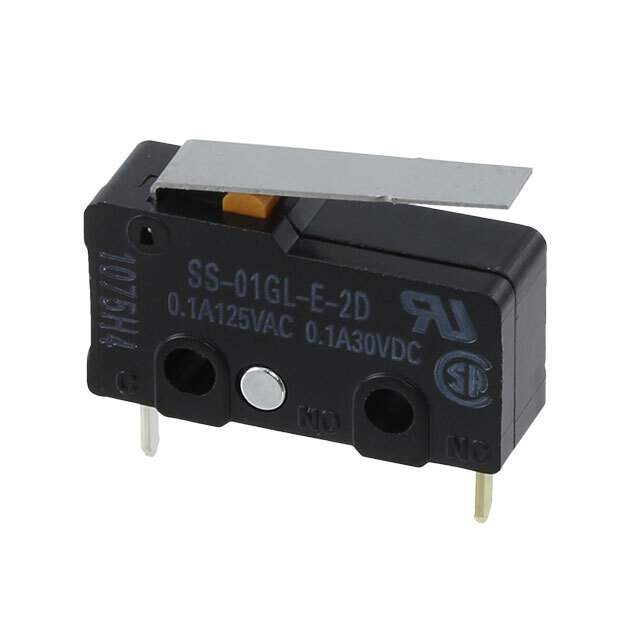

SS-10-2D1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS102D1
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233534-SS-10-2D1
Ultra Librarian 3D Model Ultra Librarian SS-10-2D1 CAD Model

Description

The SS Series Limit Switch from Omron Electronics Inc-EMC Div is a high-quality switch designed for use in a variety of applications.

  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating: 250V AC
  • Current Rating: 10A (AC)
  • Switch Function: On-Mom
  • Actuator Type: Round Pin Plunger
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 10,000,000 Cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.024 inches (0.6mm)
  • Differential Travel: 0.005 inches (0.12mm)
  • Overtravel: 0.015 inches (0.4mm)
  • Operating Position: 0.330 inches (8.4mm)
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -25°C to 85°C
