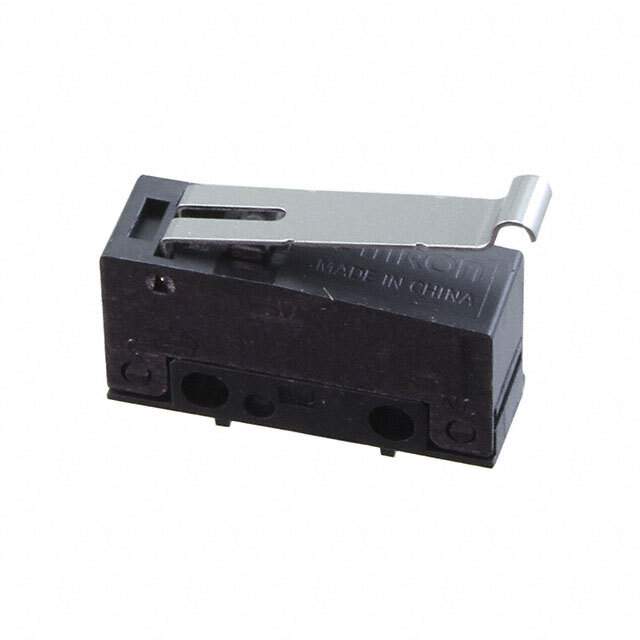

SS-01GL14-ED Real Image
Same model may have multiple batches, images only for reference.

SS-01GL14-ED

Part No SS-01GL14-ED
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Datasheet
SS-01GL14-ED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Leaf
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.398" (10.1mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL14ED
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233582-SS-01GL14-ED
Ultra Librarian 3D Model Ultra Librarian SS-01GL14-ED CAD Model

Description

The SS-01GL14-ED series limit switch from Omron Electronics Inc-EMC Div is a bulk packaged component with PC Pin termination style and leaf lever actuator type.

  • Standard Package: 500
  • EAR99 Compliant: Yes
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 8.158gf
  • Release Force: 1.020gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.398" (10.1mm)
  • Mounting Type: Through Hole
  • Temperature Range: -25°C ~ 85°C
  • HTSUS Code: 8536.50
