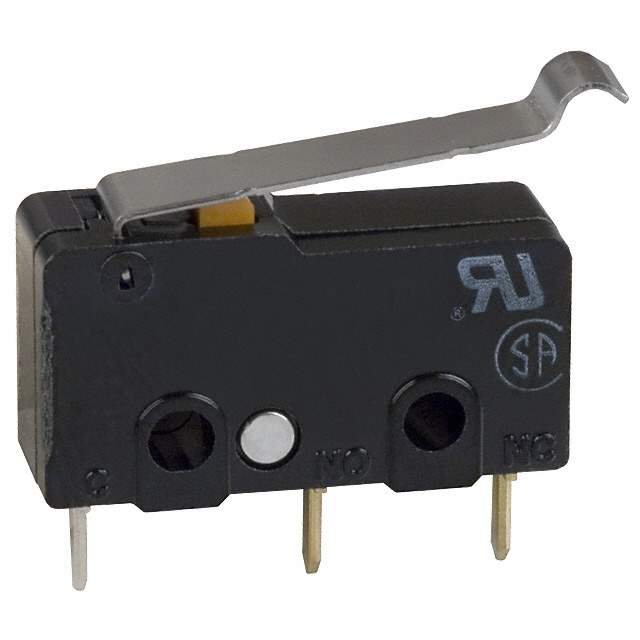

SS-01GL13-ED Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13-ED

Part No SS-01GL13-ED
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Datasheet
SS-01GL13-ED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL13ED,Z4544,-SS-01GL13-ED,SS-01GL13-ED,SS01GL13EDBYOMI
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233578-SS-01GL13-ED
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-ED CAD Model

Description

The SS-01GL13-ED limit switch from Omron Electronics Inc-EMC Div is a high-quality component that is designed to provide reliable performance in a wide range of applications.

  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating: 125 V AC and 30 V DC
  • Standard Package: 500
  • Circuit: Single Pole Double Throw
  • Switch Function: On-Mom
  • Actuator Type: Lever Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 8.158gf
  • Release Force: 1.020gf
  • Differential Travel: 0.031"
  • Overtravel: 0.047"
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -25°C to 85°C
