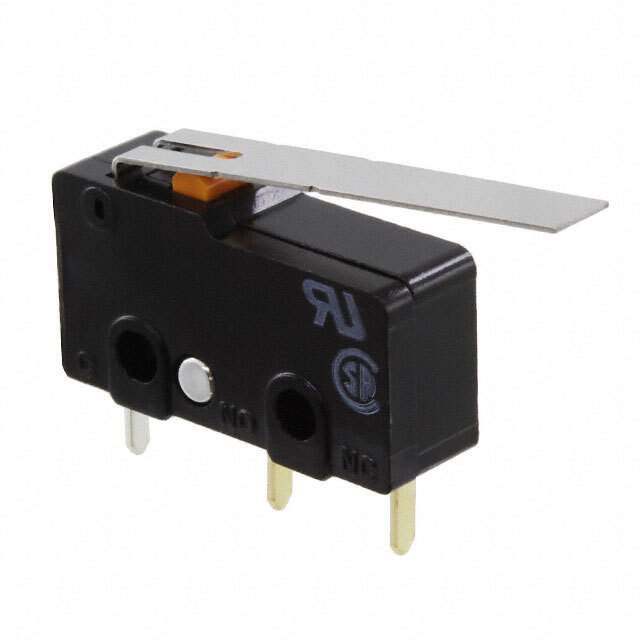

SS-01GL111-ED Real Image
Same model may have multiple batches, images only for reference.

SS-01GL111-ED

Part No SS-01GL111-ED
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Datasheet
SS-01GL111-ED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 6.118gf
Release Force 0.306gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL111ED,SS-01GL111-ED,-SS-01GL111-ED,Z4538,SS01GL111EDBYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233571-SS-01GL111-ED
Ultra Librarian 3D Model Ultra Librarian SS-01GL111-ED CAD Model

Description

The SS series limit switch from Omron Electronics Inc-EMC Div is a SPDT circuit switch with an On-Mom switch function.

  • Switch Function: On-Mom
  • Operating Force: 6.118gf
  • Release Force: 0.306gf
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Differential Travel: 0.047" (1.2mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.345" (8.8mm)
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C ~ 85°C
  • Packaging: Bulk
  • Ingress Protection Rating: IP40
  • Voltage Rating: 125 V (AC) and 30 V (DC)
  • Current Rating: 100mA (AC/DC)
  • Circuit: SPDT
  • Series: SS
