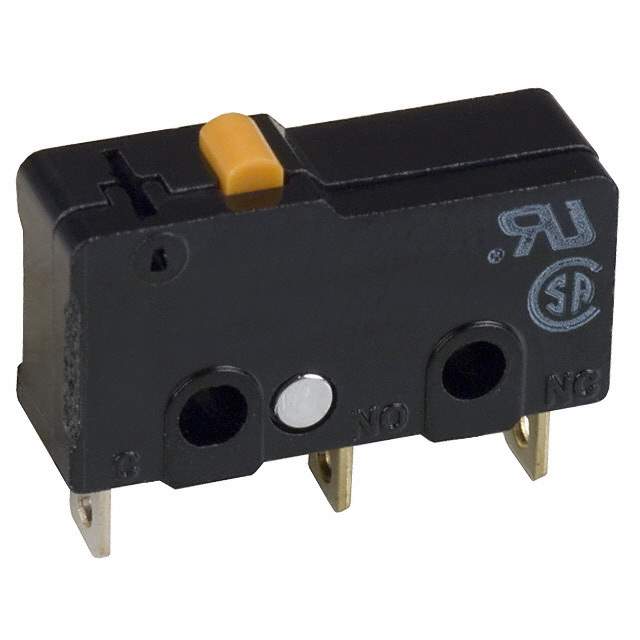

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 25gf
Release Force 2.039gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01
Other Names SS01EBYOMI,-SS-01-E,Z4531,SS-01-E,SS01E
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233565-SS-01-E
Ultra Librarian 3D Model Ultra Librarian SS-01-E CAD Model

Description

The SS-01-E series limit switch from Omron Electronics Inc-EMC Div is a bulk packaged component with solder lug termination style and round pin plunger actuator type.

  • Termination Style: Solder Lug
  • Packaging: Bulk
  • Standard Package: 500
  • ECCN: EAR99
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 25gf
  • Release Force: 2.039gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C ~ 85°C
  • Actuator Type: Round pin plunger
  • HTSUS Code: 8536.50
