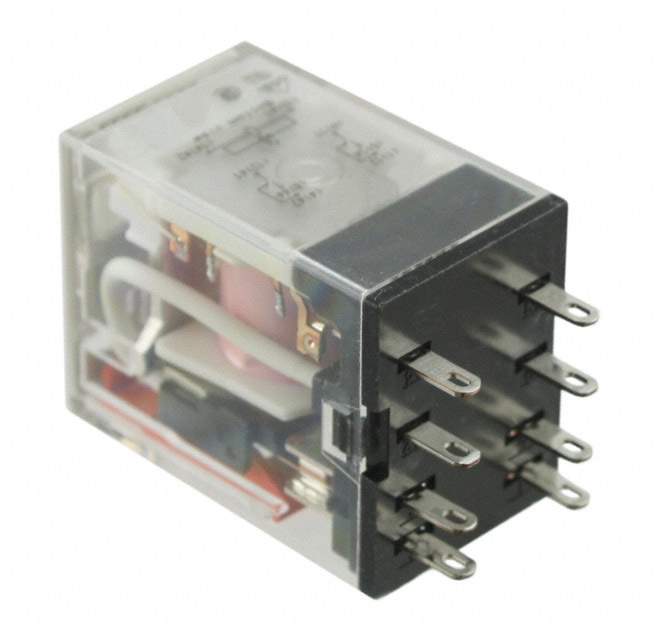

MY2N DC12 (S) Real Image
Same model may have multiple batches, images only for reference.

MY2N DC12 (S)

Part No MY2N DC12 (S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V / General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series MY
Package Bulk
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 75 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -55°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 160 Ohms
Base Product Number MY2N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names MY2N-DC12(S)-ND,MY2N-DC12(S),Z3221,MY2NDC12S,MY2NDC12(S)
Standard Package 1
Win Source Part Number 1081345-MY2N DC12 (S)
Ultra Librarian 3D Model Ultra Librarian MY2N DC12 (S) CAD Model

Description

The MY2N DC12 (S) relay is a general-purpose, non-latching plug-in relay with DPDT contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Contact Material: Silver (Ag)
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 125VDC maximum
  • Indicator: Lighted Indicator
  • Temperature Range: -55°C to 70°C
  • Mounting Type: Socketable
  • Package: Bulk
  • Operate Time: 20ms
  • Release Time: 20ms
