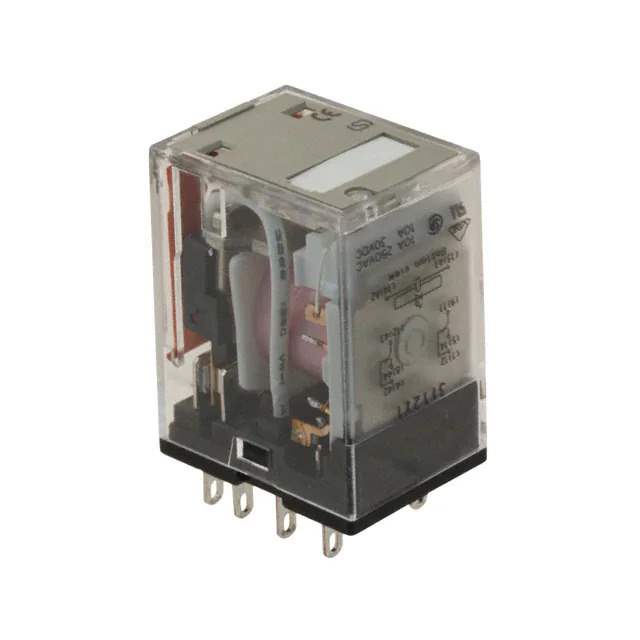

MJN2C-DC24 Real Image
Same model may have multiple batches, images only for reference.

MJN2C-DC24

Part No MJN2C-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Datasheet
MJN2C-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series MJN
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 600VAC, 28VDC - Max
Coil Current 50 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 18 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 470 Ohms
Base Product Number MJN2C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 884927-MJN2C-DC24
Ultra Librarian 3D Model Ultra Librarian MJN2C-DC24 CAD Model

Description

The Omron MJN Series Power Relay is a high-quality and reliable component for power applications. With a DPDT contact form and a plug-in, quick connect termination style, this relay offers easy and secure connections.

  • Coil Voltage: 24VDC
  • Contact Rating: 10A
  • Temperature Range: -45°C to 70°C
  • Release Time: 10ms
  • Operate Time: 20ms
