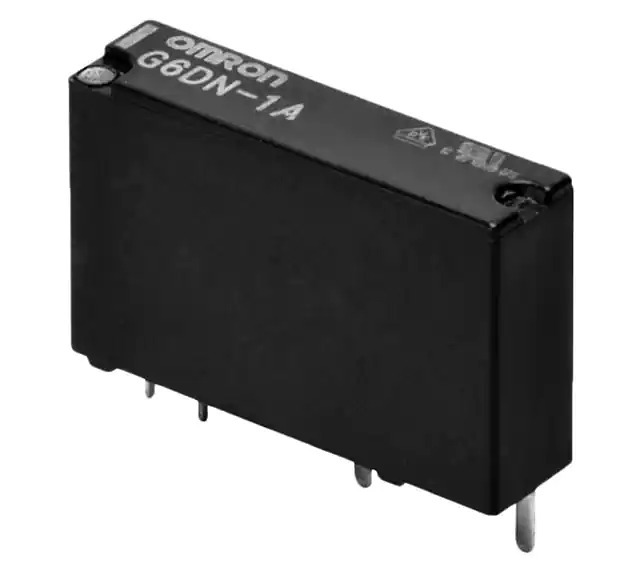

G6DN-1A-SL DC24 Omron
Same model may have multiple batches, images only for reference.

G6DN-1A-SL DC24

Part No G6DN-1A-SL DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6DN
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC, 125VDC - Max
Coil Current 4.6 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 5.2 kOhms
Base Product Number G6D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373404-G6DN-1A-SL DC24
Ultra Librarian 3D Model Ultra Librarian G6DN-1A-SL DC24 CAD Model

Description

The G6DN-1A-SL DC24 is a power relay developed by Omron Electronics Inc-EMC Div.

  • Series: G6DN
  • Type: General Purpose Relay
  • Coil Voltage: 24VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Switching Voltage: 277VAC and 125VDC maximum
  • Coil Current: 4.6mA
  • Coil Type: Non-Latching
  • Sealing: Sealed Fully
  • Coil Insulation: Class B
  • Must Operate Voltage: 16.8VDC
  • Must Release Voltage: 1.2VDC
  • Operate Time: 10ms
  • Release Time: 5ms
  • Mounting Type: Through-Hole
  • Package: Tray
