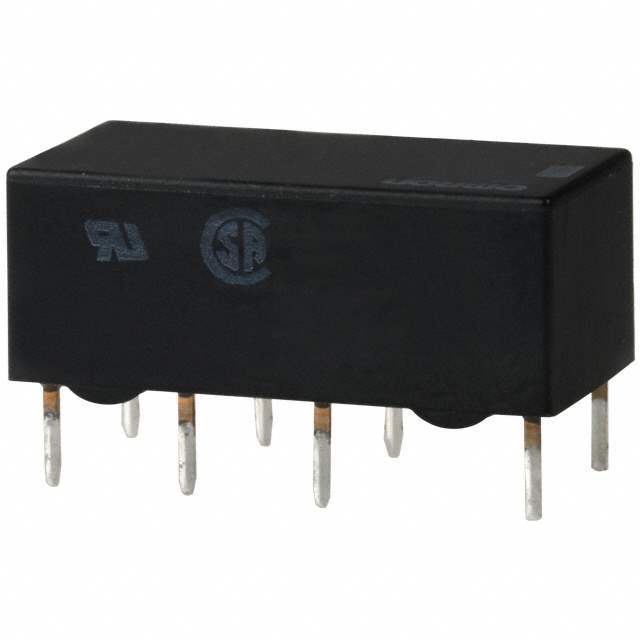

G6A-274P-ST-US DC48 Omron Electronics Inc-EMC Div
Same model may have multiple batches, images only for reference.

G6A-274P-ST-US DC48

Part No G6A-274P-ST-US DC48
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 48V
Datasheet
G6A-274P-ST-US DC48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310659-G6A-274P-ST-US DC48
Category Relays >Signal Relays, Up to 2 Amps
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Part Status Obsolete
Coil Voltage 48VDC
Mounting Type Through Hole
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 4.9 mA
Ultra Librarian 3D Model Ultra Librarian G6A-274P-ST-US DC48 CAD Model

Description

  • Resistant to electromagnetic interference, enables high-density mounting.
  • Impulse withstand voltage of 1,500V meets FCC requirements.
  • Gold-clad twin-contacts provide short contact bounce in addition to its high contact reliability.
  • A variety of products that cover a wide range of use.
