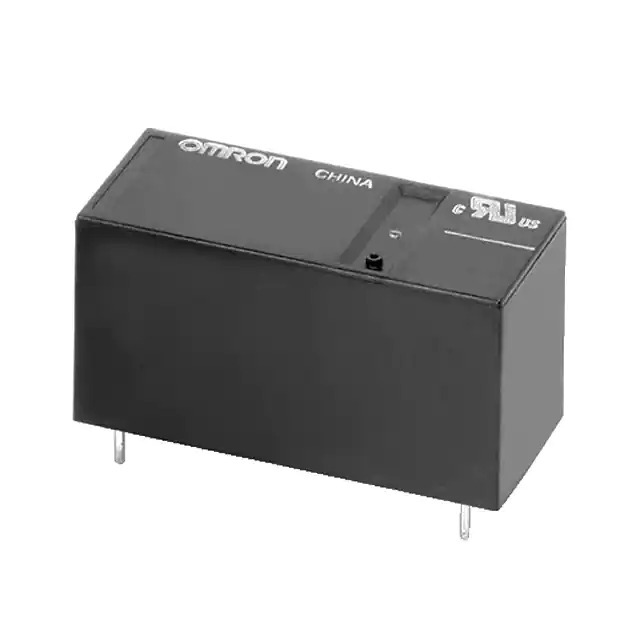

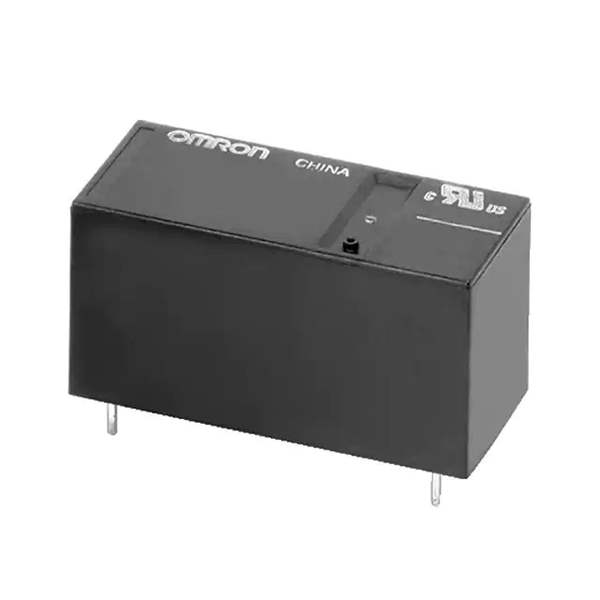

G5RL-1A-E-TV8 DC24 Omron
Same model may have multiple batches, images only for reference.

G5RL-1A-E-TV8 DC24

Part No G5RL-1A-E-TV8 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5RL
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material -
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number G5RL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373410-G5RL-1A-E-TV8 DC24
Ultra Librarian 3D Model Ultra Librarian G5RL-1A-E-TV8 DC24 CAD Model

Description

The G5RL-1A-E-TV8 DC24 is a power relay manufactured by Omron Electronics Inc-EMC Div.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC, 24VDC
  • Seal: Sealed, Flux Protection
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7mA
  • Electrical Life: 1,000 cycles
