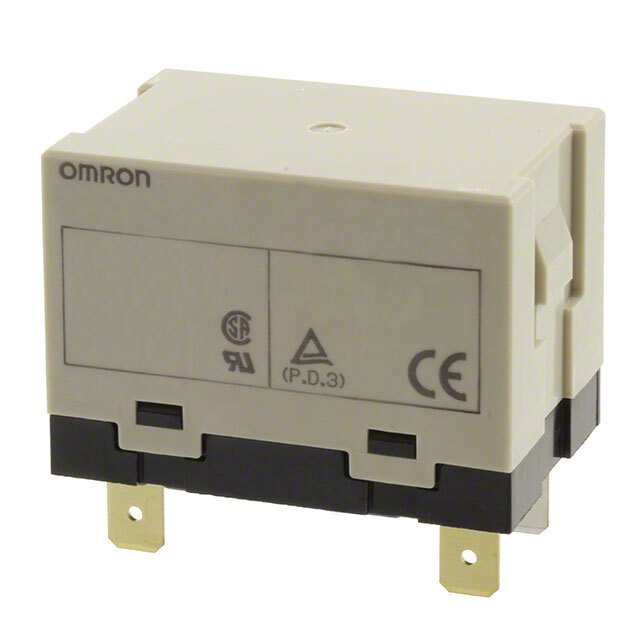

Same model may have multiple batches, images only for reference.
G5NB-1A4-EL-HA DC24 Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

G5NB-1A4-EL-HA DC24

Part No G5NB-1A4-EL-HA DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 7A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 7 A
Switching Voltage 250VAC, 30VDC - Max
Load - Max Switching 1750VA, 210W
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Approval Agency CQC, CSA, UR, VDE
Relay Type General Purpose
Package Tray
Supply and Demand Status Normal
Win Source Part Number 1549014-G5NB-1A4-EL-HA DC24
Ultra Librarian 3D Model Ultra Librarian G5NB-1A4-EL-HA DC24 CAD Model
