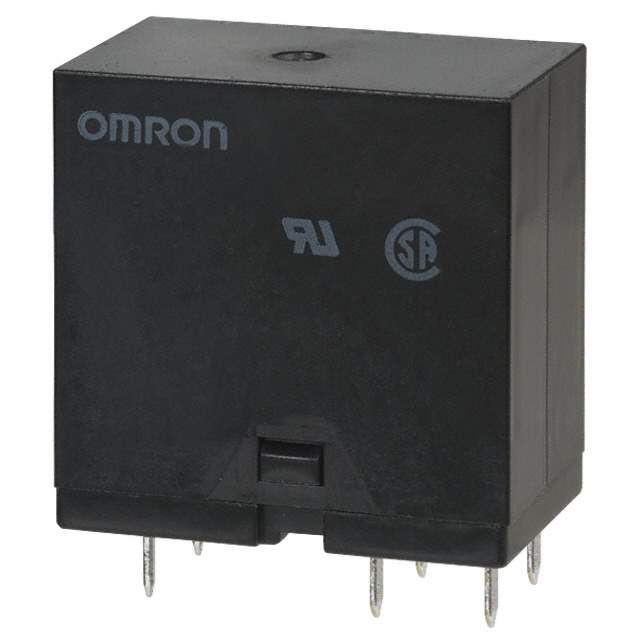

G4W1112PUSTV8HPDC24 Real Image
Same model may have multiple batches, images only for reference.

G4W1112PUSTV8HPDC24

Part No G4W1112PUSTV8HPDC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Power Relay 24VDC 15A SPST-NO(30.5x19.5x30.5)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 33.3 mA
Coil Power 800 mW
Coil Resistance 720 Ω
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 15 A
Contact Material Cadmium, Silver
Height 30.5 mm
Length 30.5 mm
Max Current Rating 15 A
Maximum Operating Temperature 55 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 125 V
Min Operating Temperature -25 °C
Mount Through Hole
Number of Pins 4
Operate Time 20 ms
Power Consumption 800 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Schedule B 8536490075, 8536490075
Termination PC Pin
Throw Configuration SPST
Weight 29 g
Width 19.5 mm
Win Source Part Number 1060219-G4W1112PUSTV8HPDC24
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G4W1112PUSTV8HPDC24 CAD Model

Description

The Omron 1060219-G4W1112PUSTV8HPDC24 is a high-quality power relay with a non-latching coil type and a contact current rating of 15 A.

  • Manufacturer: Omron
  • Suitable for: Use in various electronic devices such as computers, smartphones, and tablets.
  • Maximum Operating Temperature: 55 °C
  • RoHS Compliant: Yes
