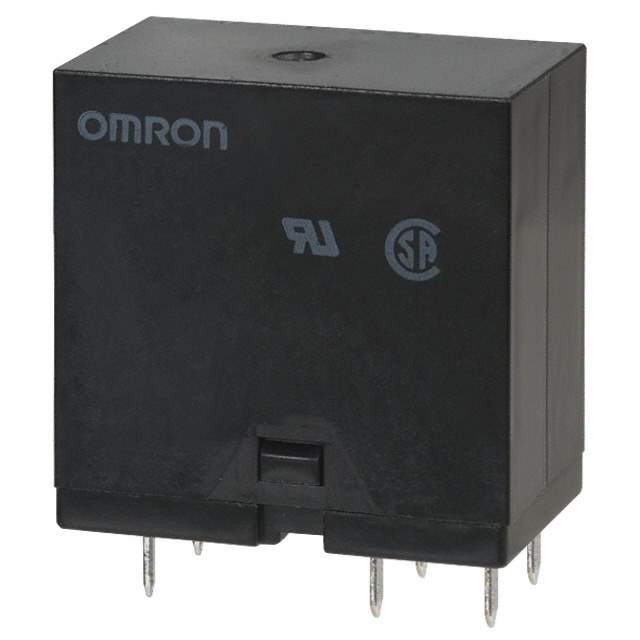

G4W-1112P-US-TV8-HP-DC12 Real Image
Same model may have multiple batches, images only for reference.

G4W-1112P-US-TV8-HP-DC12

Part No G4W-1112P-US-TV8-HP-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 15A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G4W
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 66.7 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 5 ms
Temperature Range - Operating -25°C ~ 55°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Base Product Number G4W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names Z3104,G4W-1112P-US-TV8-HP-DC12-ND,G4W1112PUSTV8HPDC12,2266-G4W-1112P-US-TV8-HP-DC12
Standard Package 50
Win Source Part Number 1060222-G4W-1112P-US-TV8-HP-DC12
Ultra Librarian 3D Model Ultra Librarian G4W-1112P-US-TV8-HP-DC12 CAD Model

Description

Omron G4W-1112P-US-TV8-HP-DC12 is a power relay that is used in various electronic devices.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Switching Voltage: 250VAC, 125VDC - Max
  • Contact Rating (current): 15 A
  • Coil Voltage: 12VDC
  • Coil Current: 66.7 mA
  • Supply and Demand Status: Short
  • Manufacturer: Omron, a reliable brand in the electronic industry.
