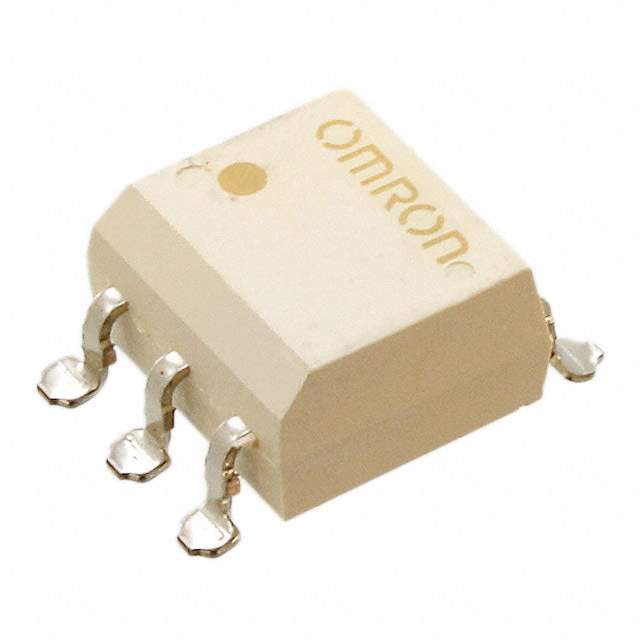

G3VM-81HR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Mounting Style SMD
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.15VDC
Load Voltage (V) 0V ~ 80V
Load Current 1.25A
On-State Resistance (Maximum) 150 mOhms
Termination Style Gull Wing
Manufacturer Package 6-SOP (0.173", 4.40mm)
Supplier Device Package 6-SOP
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1176552-G3VM-81HR
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Test & Measurement, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian G3VM-81HR CAD Model

Description

The Omron Electronics Inc-EMC Div relay is a high-quality device that is used in industrial, test, and measurement, and communication and networking applications manufactured by Omron Electronics Inc-EMC Div.

  • Package / Case: 6-SOP
  • Mounting Type: SMD
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 300
  • On-State Resistance: 150 mOhms
  • Load Current: 1.25A
  • Load Voltage: 0V ~ 80V
  • Input Voltage: 1.15VDC
