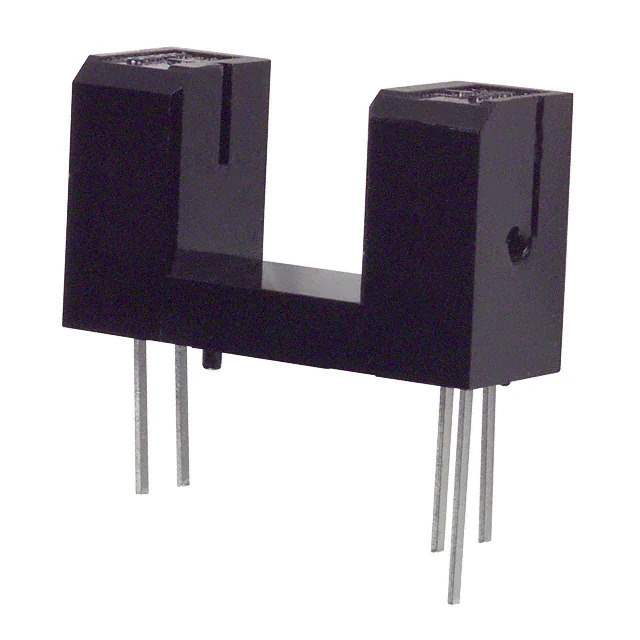

EE-SX3070 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Logic Output
Mfr Omron
Package Bulk
Product Status Active
Sensing Distance 0.315" (8mm)
Sensing Method Through-Beam
Output Configuration NPN - Open Collector/Dark-ON
Mounting Type Through Hole
Current - Supply 3.2 mA
Voltage - Supply 4.5V ~ 16V
Temperature Range - Operating -40°C ~ 75°C (TA)
Package / Case PCB Mount
Standard Package 200 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 848583-EE-SX3070
Ultra Librarian 3D Model Ultra Librarian EE-SX3070 CAD Model

Description

The Omron 848583-EE-SX3070 is a slot-type optical sensor with a logic output.

  • Sensor Type: Optical Sensor
  • Sensing Type: Slot-Type
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.315 inches (8mm)
  • Output Configuration: NPN - Open Collector/Dark-ON
  • Operating Voltage Range: 4.5V to 16V
  • Current Supply: 3.2 mA
  • Operating Temperature Range: -40°C to 75°C
