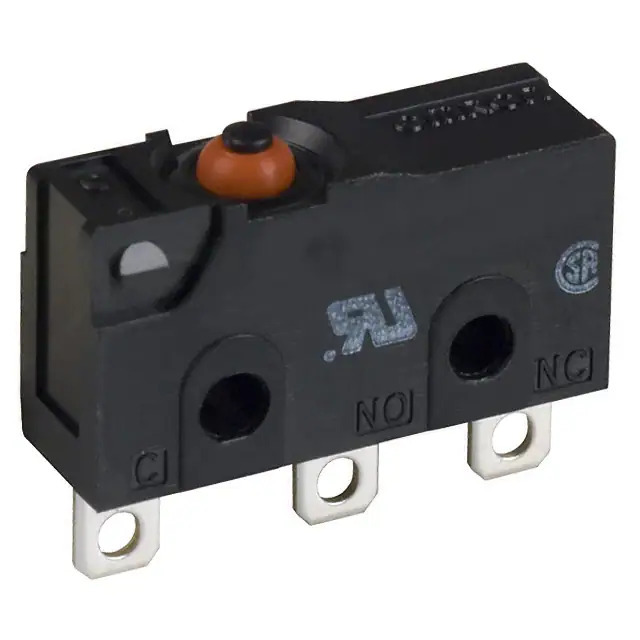

D2SW-3H Omron
Same model may have multiple batches, images only for reference.

D2SW-3H

Part No D2SW-3H
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 180gf
Release Force 30gf
Operating Position 0.330" (8.4mm)
Pretravel 0.024" (0.6mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1355604-D2SW-3H
Ultra Librarian 3D Model Ultra Librarian D2SW-3H CAD Model

Description

The D2SW-3H is a limit switch from the D2SW series by Omron Electronics Inc-EMC Div.

  • Switch Circuit: SPDT
  • Current Rating: 3A (AC/DC)
  • Operating Temperature: -40°C to 85°C
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Voltage Rating: 125VAC and 30VDC
  • Actuator: Round (Pin Plunger)
  • Termination: Solder Lug
  • Mechanical Life: 5,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Series: D2SW
