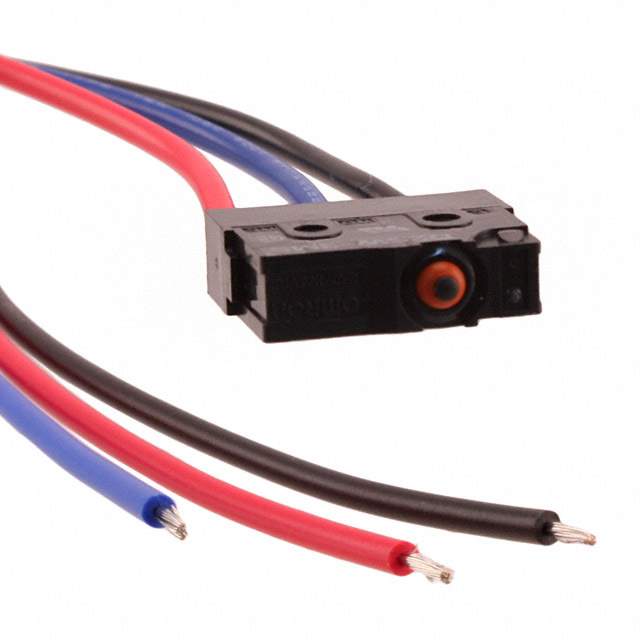

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 180gf
Release Force 30gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2SW01MS,SW1466,D2SW-01MS-ND,2266-D2SW-01MS
Standard Package 200
Win Source Part Number 1000166-D2SW-01MS
Ultra Librarian 3D Model Ultra Librarian D2SW-01MS CAD Model

Description

The Omron D2SW series limit switch, D2SW-01MS, is a Single Pole Double Throw (SPDT) switch with On-Mom switch function and round (pin plunger) actuator type. The switch has a voltage rating of 125 V AC and 30 V DC and has a current rating of 100mA (AC/DC).

  • Switch Type: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (pin plunger)
  • Voltage Rating: 125 V AC and 30 V DC
  • Current Rating: 100mA (AC/DC)
  • Mechanical Life: 5,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Ingress Protection: IP67
  • Operating Temperature Range: -40°C to 85°C
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Release Force: 30gf
  • Operating Force: 180gf
  • Mounting Type: Chassis Mount
  • Packaging: Tray
  • Manufacturer: Omron Electronics Inc-EMC Div
