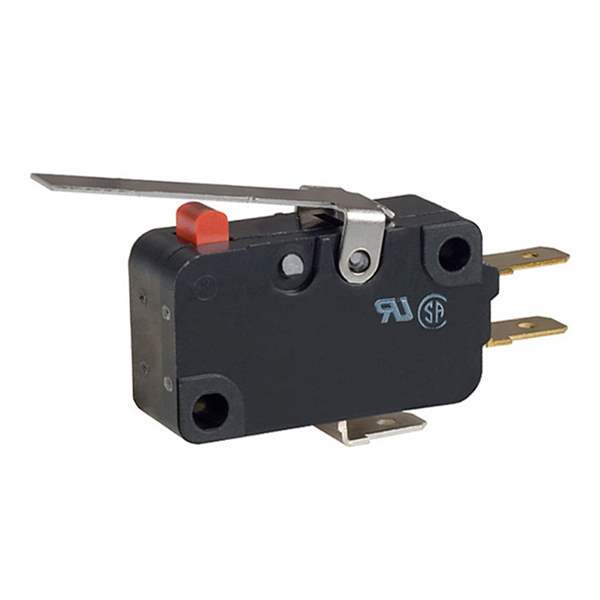

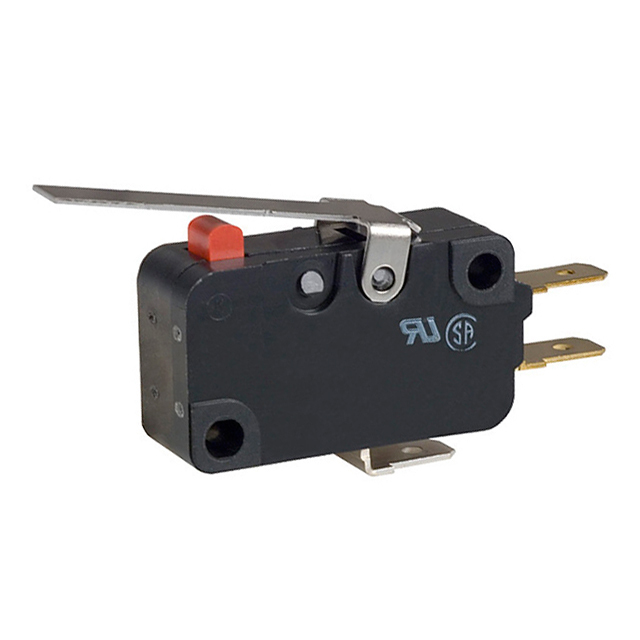

D2MQ-4L-105-1-L Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D2MQ-4L-105-1-L

Part No D2MQ-4L-105-1-L
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 0.05A 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 40gf
Release Force 4.079gf
Operating Position 0.280" (7.1mm)
Pretravel 0.083" (2.1mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.011" (0.3mm)
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Temperature Range - Operating -15°C ~ 70°C
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1551462-D2MQ-4L-105-1-L
Ultra Librarian 3D Model Ultra Librarian D2MQ-4L-105-1-L CAD Model
