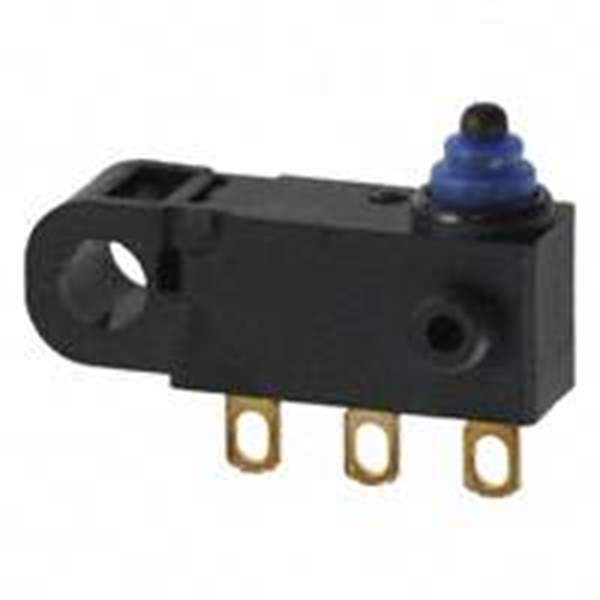

D2HW-C201H Real Image
Same model may have multiple batches, images only for reference.

D2HW-C201H

Part No D2HW-C201H
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HW-C201H BY OMR,SW1153,D2HW-C201H-ND,D2HWC201HBYOMR,D2HWC201H
Standard Package 500
Win Source Part Number 1000165-D2HW-C201H
Ultra Librarian 3D Model Ultra Librarian D2HW-C201H CAD Model

Description

The D2HW-C201H is a limit switch from Omron Electronics Inc-EMC Div with a circuit configuration of SPDT and a switch function of On-Mom. It has an actuator type of round (pin plunger) and a mounting type of chassis mount.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (pin plunger)
  • Mounting Type: Chassis Mount
  • Operating Force: 76gf
  • Release Force: 10gf
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Differential Travel: 0.010 inches (0.25mm)
  • Overtravel: 0.055 inches (1.4mm)
  • Voltage Rating: 125V AC and 12V DC
  • Current Rating: 100mA (AC) and 2A (DC)
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Manufacturer: Omron Electronics Inc-EMC Div
