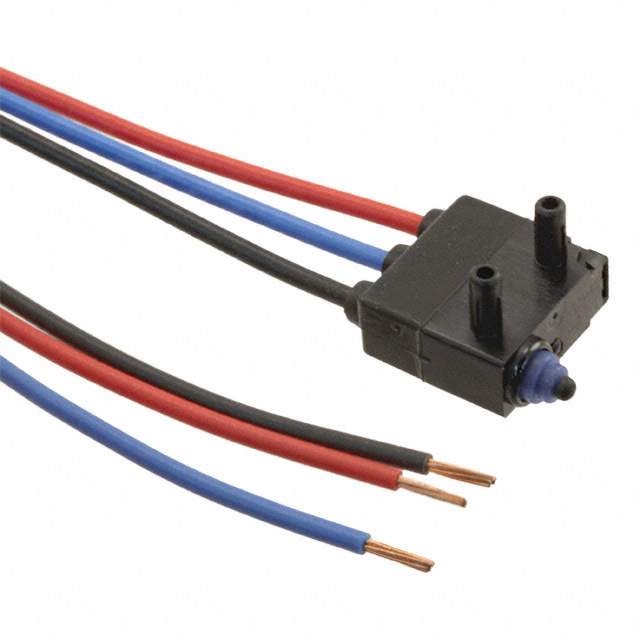

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Support Posts
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HW-BR201M BY OMR,D2HWBR201MBYOMR,SW719,2266-D2HW-BR201M,D2HWBR201M
Standard Package 100
Win Source Part Number 1025226-D2HW-BR201M
Ultra Librarian 3D Model Ultra Librarian D2HW-BR201M CAD Model

Description

The D2HW-BR201M is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Switch Type: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (pin plunger)
  • Voltage Rating: 125 VAC and 12 VDC
  • Ingress Protection: IP67
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Force: 76gf
  • Release Force: 10gf
  • Temperature Range: -40°C to 85°C
