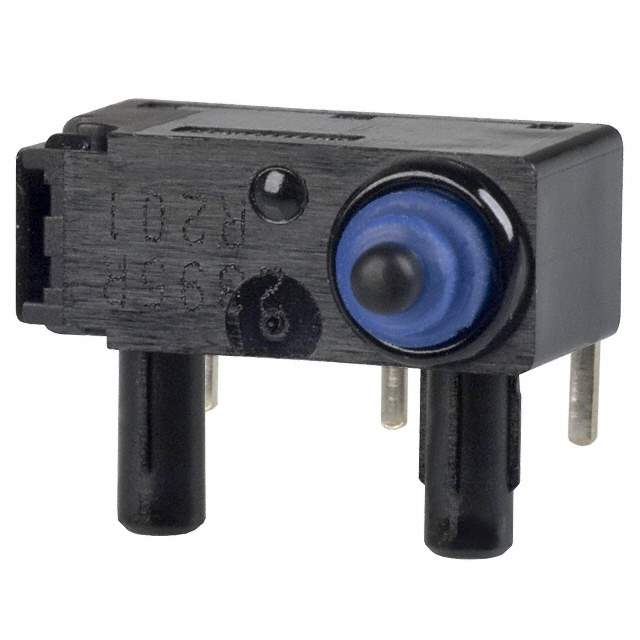

D2HW-BR201DR Real Image
Same model may have multiple batches, images only for reference.

D2HW-BR201DR

Part No D2HW-BR201DR
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Support Posts
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWBR201DR,SW714
Standard Package 250
Win Source Part Number 1219322-D2HW-BR201DR
Ultra Librarian 3D Model Ultra Librarian D2HW-BR201DR CAD Model

Description

The 1219322-D2HW-BR201DR is a limit switch component that is commonly used in electronic devices manufactured by Omron Electronics Inc-EMC Div.

  • Win Source Part Number: 1219322-D2HW-BR201DR
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating AC: 125 V AC
  • Voltage Rating DC: 12 V DC
  • Ingress Protection: IP67
  • Mechanical Life: 1,000,000 Cycles
