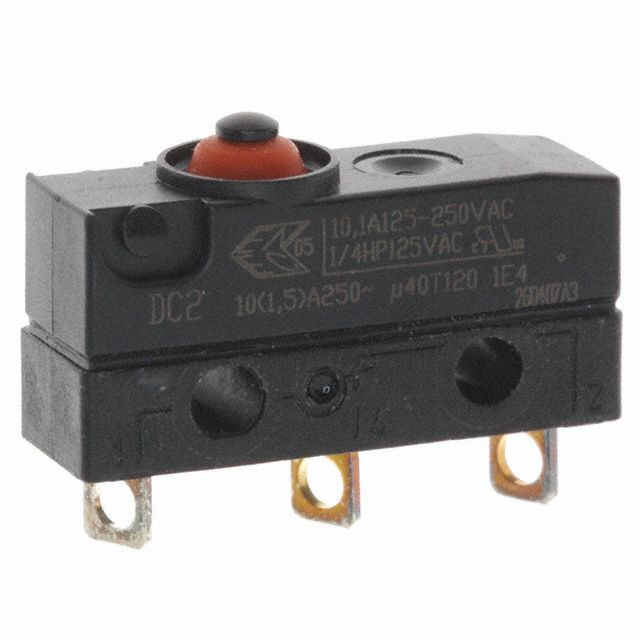

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPST-NO (DM)
Switch Function Off-Mom
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP40
Operating Force 600gf
Operating Position 0.343" (8.7mm)
Overtravel 0.090" (2.3mm)
Mechanical Life 10,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -25°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1551850-D2D-1101
Ultra Librarian 3D Model Ultra Librarian D2D-1101 CAD Model
