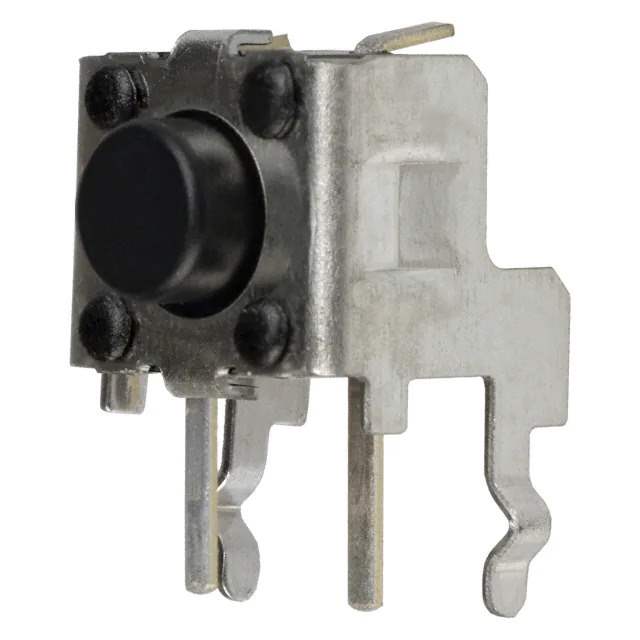

B3F-3120 Real Image
Same model may have multiple batches, images only for reference.

B3F-3120

Part No B3F-3120
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet
B3F-3120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole, Right Angle
Actuator Length, Right Angle 3.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.30mm x 6.25mm
Illumination Non-Illuminated
Operating Force 100gf
Features Grounding Pin
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3F
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 863080-B3F-3120
Ultra Librarian 3D Model Ultra Librarian B3F-3120 CAD Model

Description

The 863080-B3F-3120 is a tactile switch that is widely used in various electronic devices and applications.

  • Series: B3F
  • Termination Style: PC pin
  • Package: Bulk
  • Pieces: 1,000 pieces
  • Circuit: SPST-NO
