B3AL-1002P Omron – Price, Stock & Datasheet

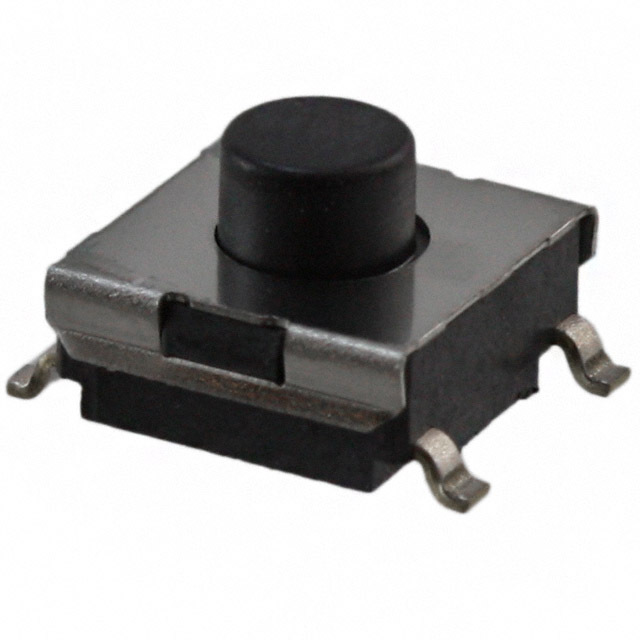

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 16VDC
Actuator Type Square Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 6.90mm x 6.00mm
Illumination Non-Illuminated
Operating Force 306gf
Temperature Range - Operating -40°C ~ 90°C
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1563559-B3AL-1002P
Ultra Librarian 3D Model Ultra Librarian B3AL-1002P CAD Model
