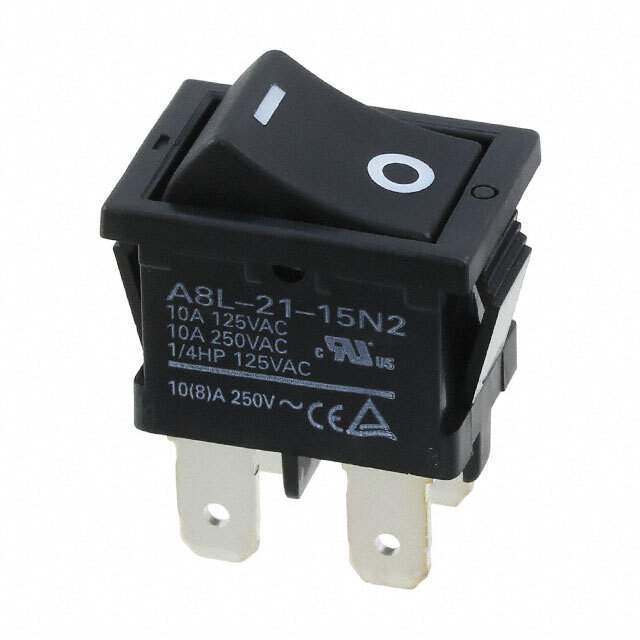

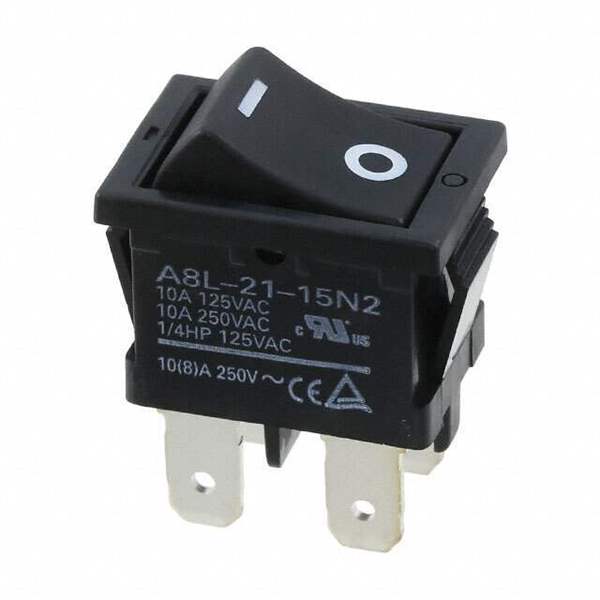

A8L-21-15N2 Omron Electronics Inc-EMC Div
Same model may have multiple batches, images only for reference.

A8L-21-15N2

Part No A8L-21-15N2
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER DPST 10A 125V
Datasheet
A8L-21-15N2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203969-A8L-21-15N2
Manufacturer Omron Electronics Inc-EMC Div
Category Switches -Rocker Switches
Series A8L
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Actuator Type Concave (Curved)
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Ultra Librarian 3D Model Ultra Librarian A8L-21-15N2 CAD Model

Description

• Withstands inrush currents up to 100 A with a unique switching mechanism.
• Soft touch with firm switching action.
• Easy to mount by snap fitting.
• Contact gap of 3 mm minimum.
• UL and cUL standards approved. Conforms to EN standards.
